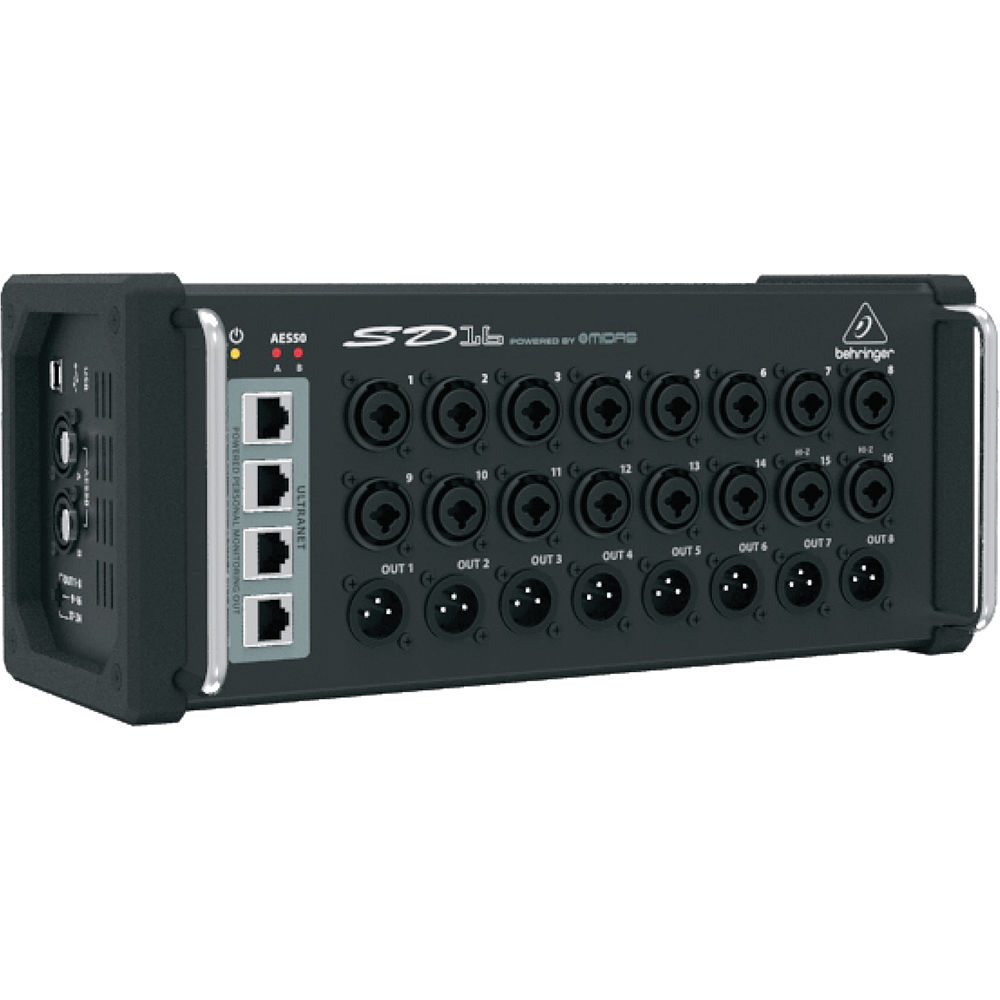

Behringer SD16 I/O Stage Box with 16 Preamps
Call for Price
The Behringer SD16 – I/O Stage Box with 16 Preamps is designed to connect the onstage talent to the Front of House (FOH) console.
Key Features
- 16x Remote-Controlled Preamps
- 8x Servo-Balanced XLR Outputs
- AES50 Networking
- Ultranet Personal Monitoring Hub
Out of stock
The Behringer SD16 I/O Stage Box with 16 Preamps is designed to connect the onstage talent to the Front of House (FOH) console.
The stage box provides 16 remote-controlled Midas-designed preamplifiers as well as eight servo-balanced analog XLR outputs.
Two of the programmable inputs are compatible with Hi-Z sources so you can connect keyboards, acoustic, and bass guitars, etc. A USB port is included for fast and easy system updates via your PC.
An integrated 2-port Ultranet distribution hub is included for direct connection to the company’s P16-M personal monitor mixers without the need for any additional hard wire.
The Behringer SD16 I/O Stage Box with 16 Preamps features rugged protective bumpers and the option to be rack mounted using the included rack ears.
A single Cat 5e cable connects the stage box, and up to three stage boxes can be cascaded together for a total of 48 inputs and 24 balanced outputs.
An onboard Ultranet distribution hub provides power and 16 channels of audio to two of the company’s Powerplay Behringer SD16 I/O Stage Box with 16 Preamps.
Remote Controllable Preamps
Includes award-winning Midas-designed microphone preamplifiers with +48V phantom power and destination routing
Servo-Balanced XLR Outputs
Allows you to connect to your amp racks, active loudspeakers, or monitors using Cirrus Logic 24-bit converters
Ultranet
Transmits up to 16 independent channels of 24-bit digital audio and control data via a single Cat 5e cable between compatible digital devices
Klark Teknik AES50
- 48 bidirectional audio channels over Cat 5e cable (48 kHz)
- 24 bidirectional audio channels over Cat 5e cable (96 kHz)
- Single cable duplex interconnection for audio and sample clocks
- Ethernet physical layer audio data transmission
- High channel count and low deterministic latency
- Behringer SD16 I/O Stage Box with 16 Preamps
- Accurate phase-aligned clock distribution.
- Comprehensive error detection and management
- Provision for redundant networking
- Minimal configuration – total ease of deployment and use
- Ethernet TCP/IP protocol-compatible auxiliary data channel
- Royalty-free implementations available as Xilinx FPGA cores
- OEM modules available from developer partners
| Brand | |
|---|---|
| Processing | – |
| A/D and D/A Conversion | 24-bit at 44.1/48 kHz, 114 dB dynamic range |
| Latency | 1.1 ms |
| Connectors | – |
| Preamps | 16 (Programmable mic preamps, designed by Midas, balanced XLR/TRS combo) |
| Line Outputs | 8 (balanced XLR) |
| USB | 1x type B port (for system updates) |
| Inputs | 48 |
| Outputs | 24 |
| RJ45 Connector | Ultranet: 4x |
| Microphone | – |
| Design | Midas |
| THD + N | <0.005%, A-weighted (20 dB gain, 0 dBu out) |
| Phantom Power | +48 V, switchable per input |
| Equivalent Input Noise | -128 dB, A-weighted, XLR (input shorted) |
| CMRR | At 20 dB gain (typical): >60 dB |
| I/O | – |
| Frequency Range | 10 to 22,000 Hz |
| Dynamic Range | Analog mic in to analog out (typical): 105 dB |
| Crosstalk | 90 dB at 1 kHz, adjacent channels |
| Impedance | Mic input XLR jack, unbalanced/balanced: 5 kOhms |
| Input Level | Non clip maximum level, TRS: +21 dBu |
| Output | – |
| Output Impedance | 50 ohms, XLR, unbalanced/balanced |
| Output Level | +4 dBu, XLR, nominal/maximum |
| Residual Noise | XLR: -88 dBu, A-weighted |
| Digital Audio I/O | – |
| Networking | AES50 SuperMac networking at 48 or 44.1 kHz, 24-bit PCM: 2x 48 channels, bidirectional |
| Power | – |
| Power Supply | 100 to 240 V (50/60 Hz) |
| Power Consumption | 45 W |
| Physical | – |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Dimensions | 13.1 x 5.9 x 5.5" (333 x 149 x 140 mm) |
| Weight | 7.1 lb (3.2 kg) |
| Packaging Info | – |
| Package Weight | 9.355 lb |
| Box Dimensions (LxWxH) | 15.4 x 8.3 x 7.8" |
Only logged in customers who have purchased this product may leave a review.
- Behringer SD16 - I/O Stage Box with 16 Preamps
- Power Cord
- Rack Ears
- Protection Bumpers
