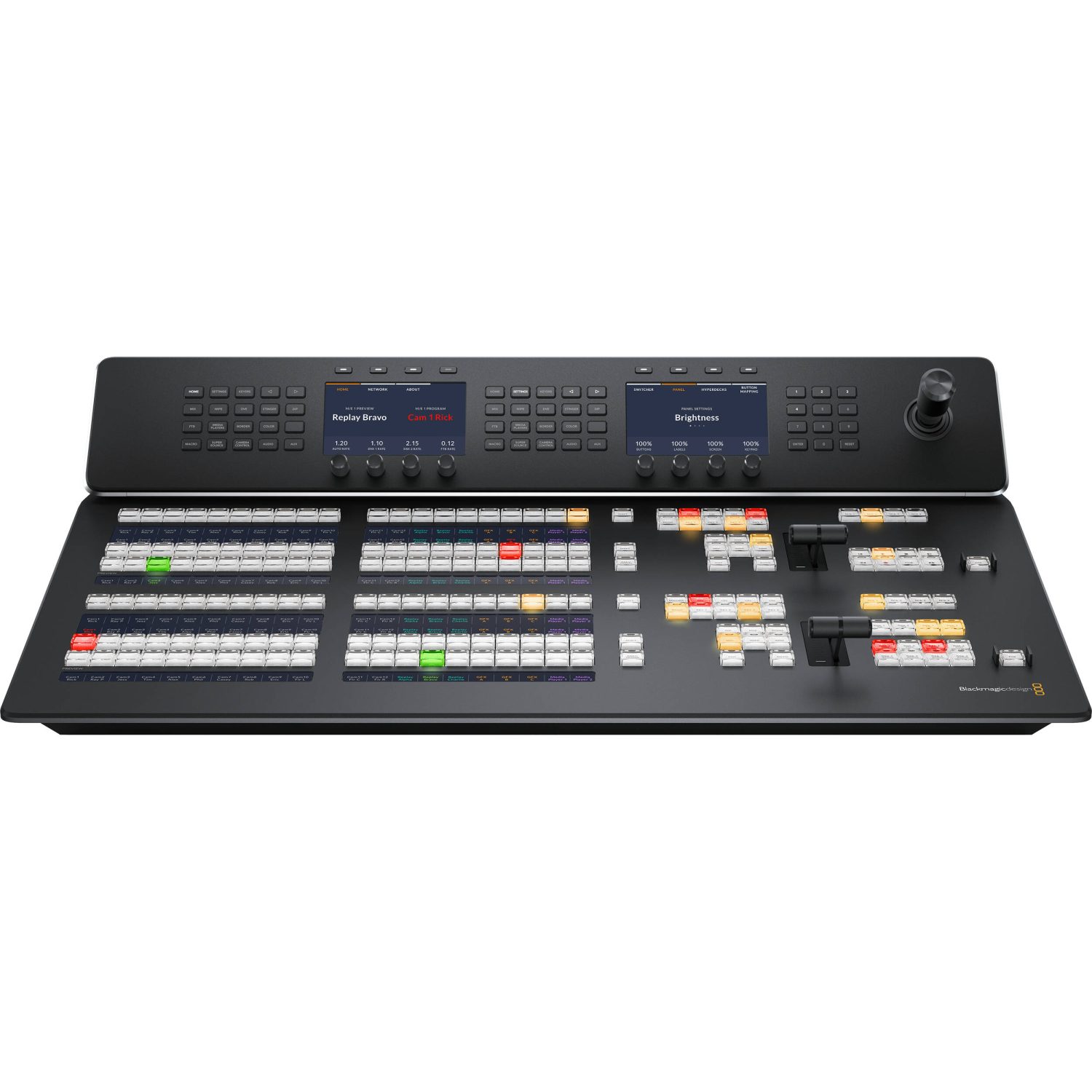

Blackmagic Design ATEM 2 M/E Advanced Panel

SKU: SWPANELADV2ME Category: Tags: ,

Panel for BMD ATEM Switchers, High-Quality Buttons / Knobs / Controls, 2 x M/E Rows with 20 x Buttons per Row, 2 System Control LCDs, Control 4 M/Es.

Call for Price

The ATEM 2 M/E Advanced Panel is a highly sophisticated advancement of previous panel models as a companion to separately available professional ATEM switchers from Blackmagic Design.

Using features such as high-quality buttons, knobs, fader bars, and a 3-axis joystick, you’ll be able to customize the extensive panel to your precise needs.

Complex live productions require a versatile control panel, and the ATEM 2 M/E Advanced Panel allows you to customize, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and it also sports 8 on-air indicators.

The panel features two rows of M/E with 20 input buttons per row, two system control LCDs, independent LCDs for custom labeling of every row and button, 20 direct cross points, 40 shifted cross points, two preview transitions, and various DSK transition selectors such as Auto, Cut, and Tie/Preview.

The ATEM 2 M/E Advanced Panel connects to the switcher via 10/100/1000 BaseT Ethernet, and there are four Ethernet loop outputs for connecting to another panel or to a media-management computer. The panel receives firmware updates via its USB Type-C input.

Brand

Ethernet Connector

4 x RJ45, 10/100/1000 BaseT

Other I/O

1 x USB Type-C, Firmware

Buttons

40 x Input Buttons (20 per Row)

Mix Controller

20 x Direct Cross Points
40 x Shifted Cross Points
2 x M/E Rows
2 x BKG Next Transition Selectors, Key 1 to Key 4
8 x On-Air Indicators
2 x DSK Transition Selectors: Auto, Cut, Tie/Preview
2 x Preview Transitions

LCD Display

2 x System LCDs per Row
20 x LCDs (1 x per Button)

Controls

1 x 3-Axis Joystick
1 x Numeric Keypad
2 x Fader Bars
8 x Transport Control Buttons

Redundant Power

Yes

Input Voltage

100 to 240 VAC

Power Consumption

150 W

Dimensions

28.54 x 19 x 6.53" / 111 x 72.5 x 16.6 cm

Weight

24.25 lb / 11 kg

Packaging Info

Package Weight

37.25 lb

Box Dimensions (LxWxH)

33.88 x 24.13 x 10.38"
