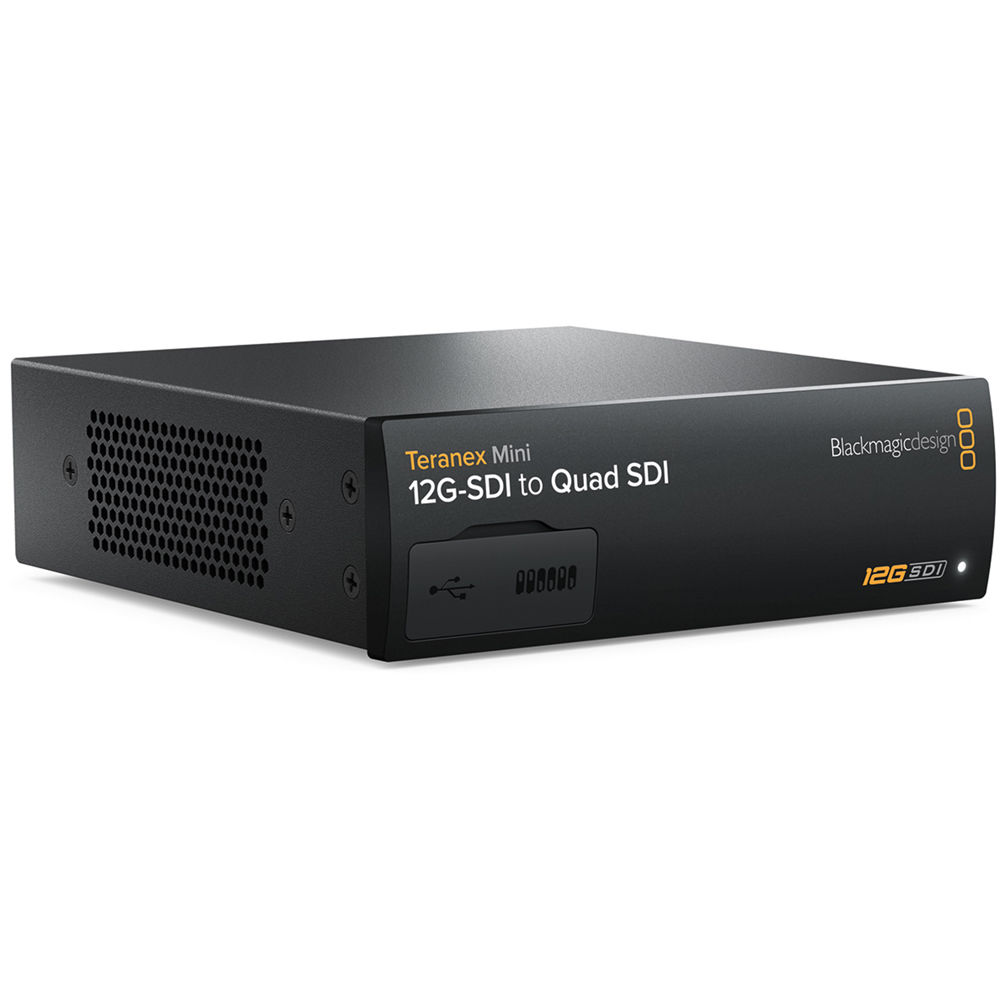

Blackmagic Design Teranex Mini SDI to Quad SDI 12G Converter
Call for Price
Blackmagic Design Teranex Mini SDI to Quad SDI 12G Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment.

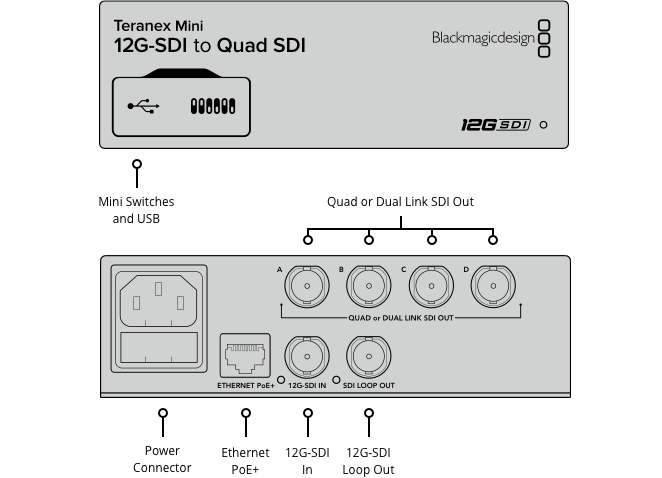

Key Features
- 12G SDI Input
- Quad or Dual link SDI output
- SDI Loop Output
- Ethernet PoE+
Out of stock
Blackmagic Design Teranex Mini Converter 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment.
Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays. Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.
Introducing Blackmagic Design Teranex Mini Converter, the next generation 12G-SDI converters with award winning Teranex quality and support for all SD, HD and Ultra HD formats up to 2160p60!
All Teranex Minis include an internal AC power supply, professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and Poe alternate power!

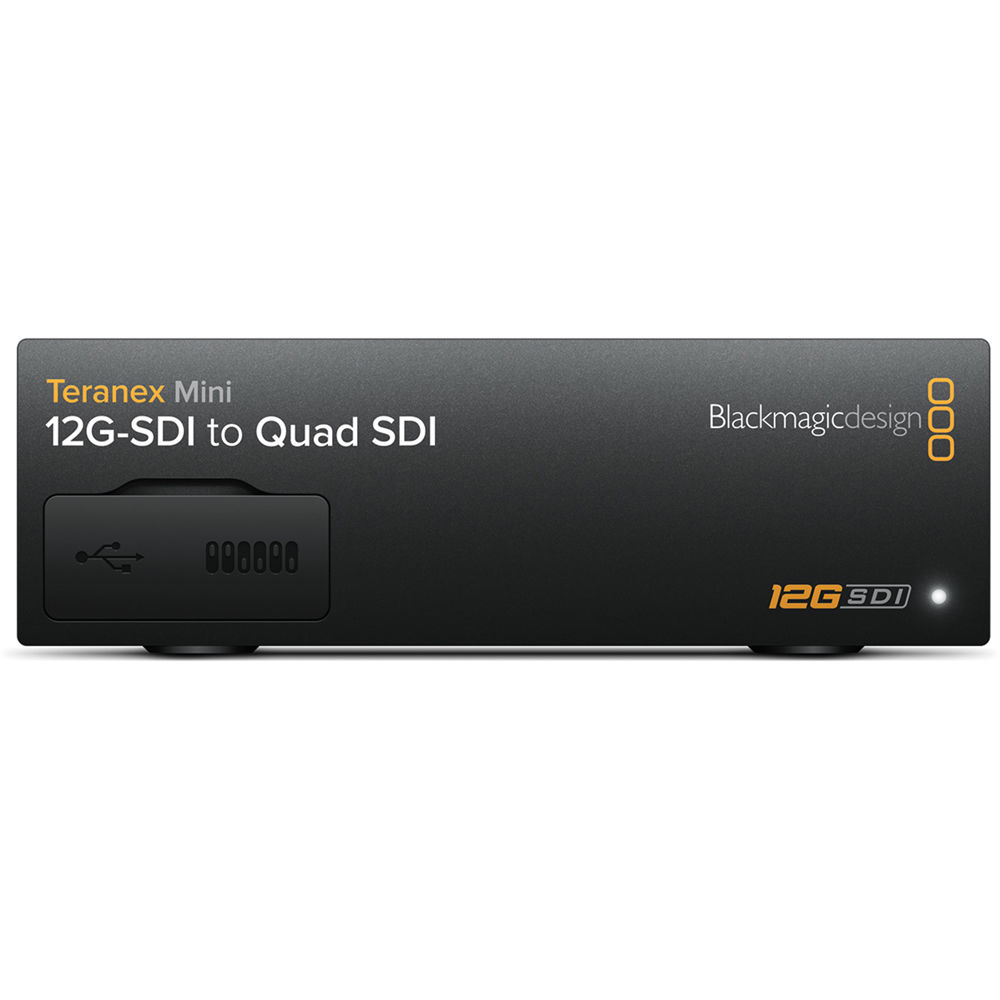

Blackmagic Design Teranex Mini Converter features a user upgradable front panel that includes a color display and user controls so you can quickly monitor video and change settings right from the front of the converter! You get all of the same great features of regular mini converters and so much more!
| Brand | |
|---|---|
| Connections | – |

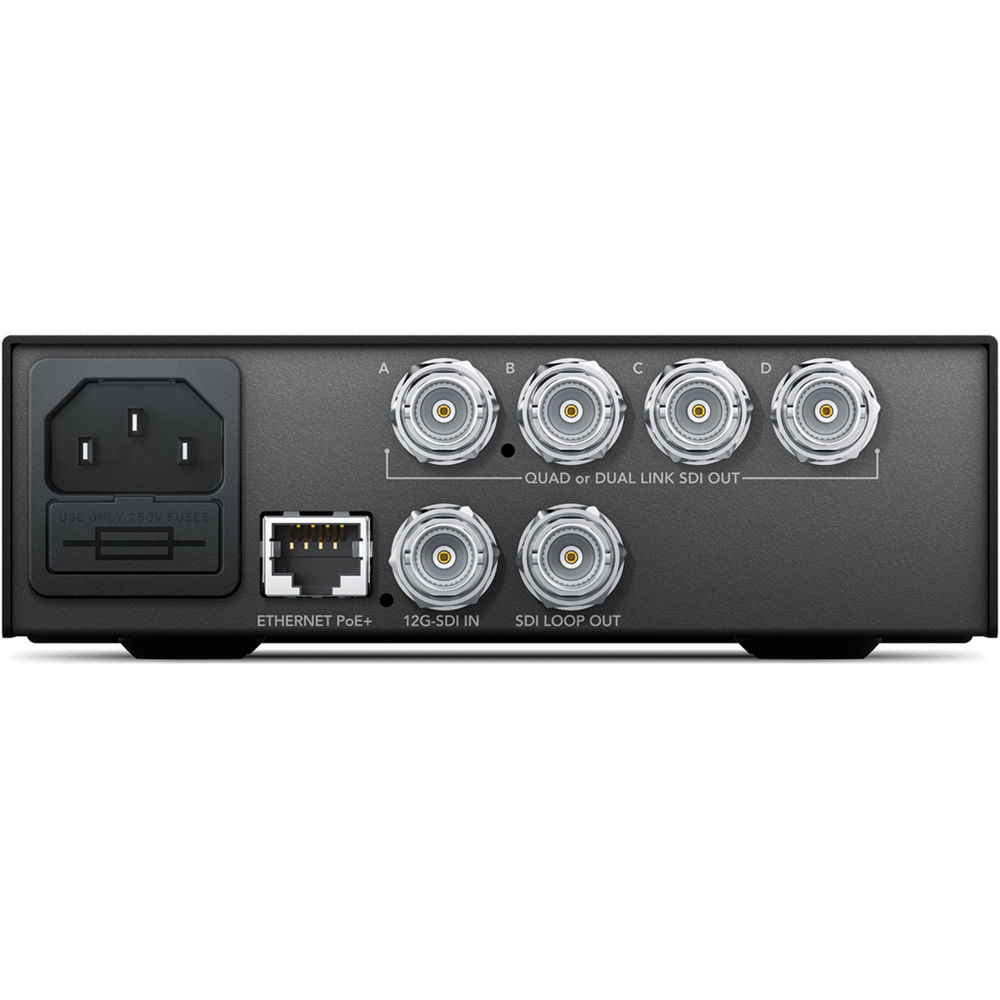

| SDI Video Inputs | 1 x 12G-SDI SD/HD/2K/4K auto switching. |
| SDI Video Outputs | 4 x 3G-SDI and 1 x 12G-SDI loop output |
| Embedded Audio Support | 16 channels |
| Multi Rate Support | Automatic switching between SD/HD/2K and 4K |
| Updates and Configuration | USB or Ethernet |
| Reclocking | Yes |
| Standards | – |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 |
| 2K Video Standards | 2K DCI 23.98, 2K DCI 24p, 2K DCI 25p |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2082-1 and SMPTE 2082-10 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Color Space | YUV & RGB |
| Power Supply | 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 – 240V AC Input |
| Packaging Info | – |
| ackage Weight | 1.955 lb |
| Box Dimensions (LxWxH) | 9.05 x 7.9 x 2.35" |
