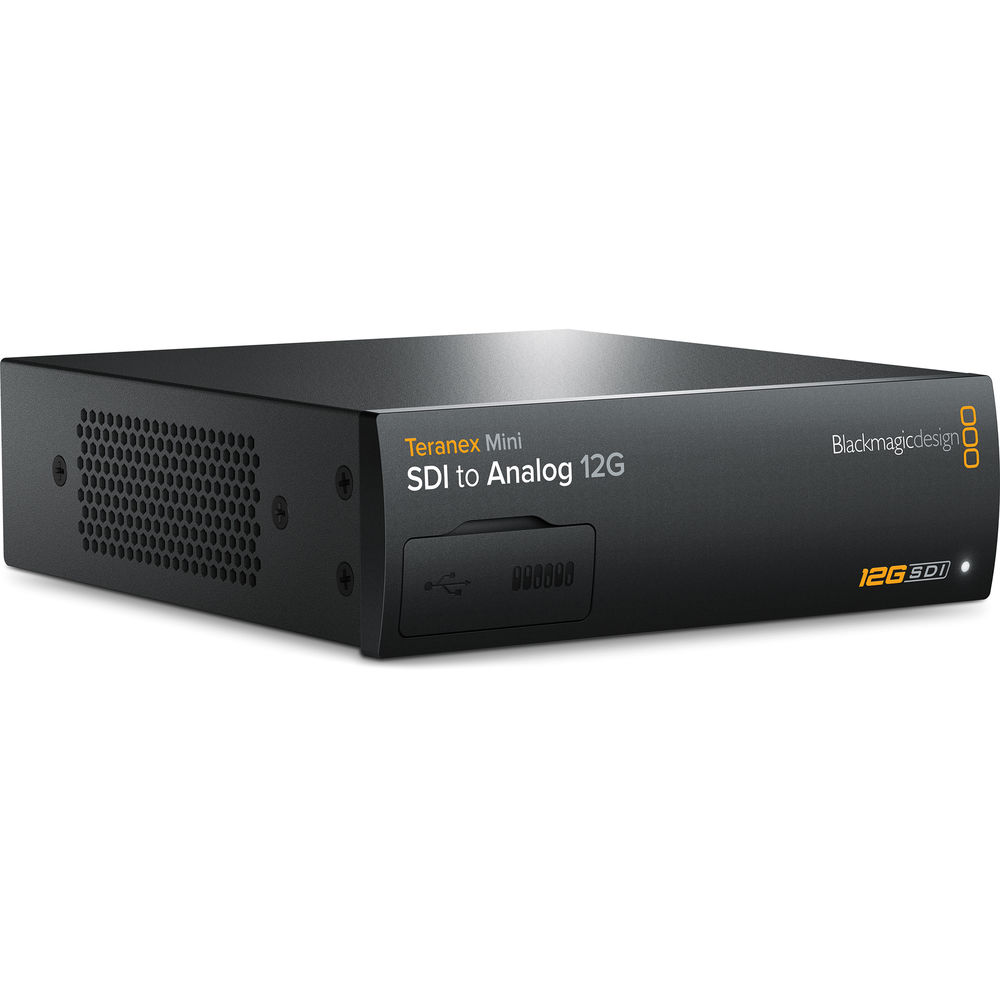

Blackmagic Design Teranex Mini SDI to Analog 12G Converter

Blackmagic Teranex SDI to Analog 12G Converter Supporting up to 12G-SDI data rates with intelligent heat dissipation and offering features such as XLR connections and an Ethernet control and PoE port.

The Blackmagic Teranex SDI to Analog 12G Converter, is a highly improved solution for rack-mount as well as cable duct and desktop installations.

Down-convert up to a 12G-SDI Full 4K DCI 4096x2160p signal to analog so you can connect high-resolution sources to component video equipment in HD or SD.

You can also output the audio of the SDI signal via full-size XLR outputs that are switchable between balanced analog and AES/EBU digital audio.

The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1U 19″ rack tray, and they can just as easily be removed.

And all this with the advantage of 12G-SDI capability. The Ethernet port on the rear will allow you to manage the Teranex Mini remotely or can alternatively be used for power over Ethernet.

If you don’t want to use power over Ethernet, you won’t have to deal with cumbersome power supplies,

The Blackmagic Teranex SDI to Analog 12G Converter features a built-in 90-240V power supply, and all you’ll need is a standard IEC power cable, sold separately.

The Blackmagic Teranex SDI to Analog 12G Converter is built using high-quality Teranex video processing technology and is ideal for all broadcast, post production, and other professional video applications.

Key Features

• Down-convert up to a 12G-SDI Full 4K DCI 4096x2160p signal to analog
• Connect high-resolution sources to component video equipment in HD or SD
• Full-size XLR connections switchable between balanced analog and AES/EBU audio
• Ethernet remote control and PoE port Intelligent thermal design heat dissipation effectively prevents overheating
• Blackmagic Teranex SDI to Analog 12G Converter Three units are rack-mountable in a 1U 19″ rack using an optional rack tray Can
• be used desktop mounted or installed concealed in cable ducts
• Built-in 90-240V power supply requiring only a standard IEC power cable, sold separately
• An array of mini switches allow instant settings changes
• Front panel is replaceable with an optional Smart Panel featuring controls and an LCD
• Manage numerous units simultaneously using the included Converter Utility software
• Full SDI re-clocking and low jitter
