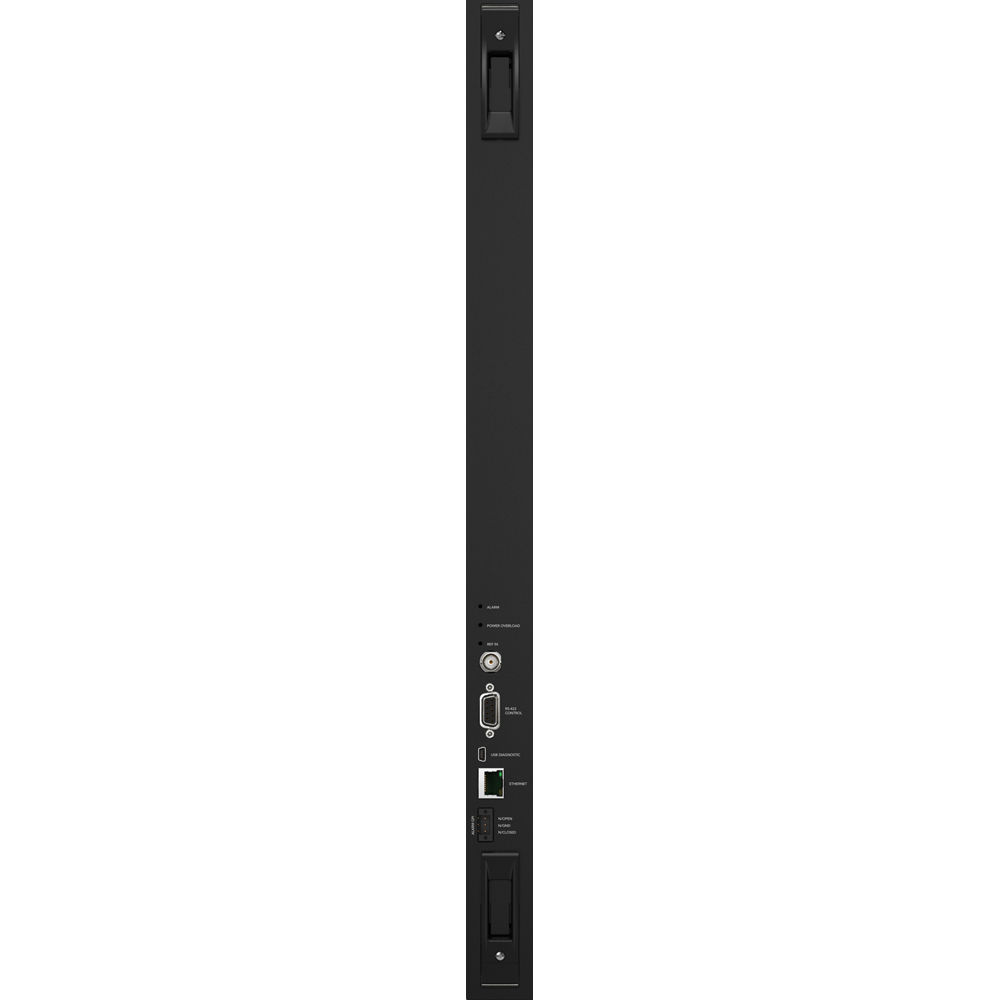

Blackmagic Design Universal Videohub 288 Crosspoint

Blackmagic Universal Videohub 288 Crosspoint is a hot-pluggable card module designed for use in the Videohub 288 rack frame. It supports up to 288 x 288 SDI and deck control, ethernet and serial router control, genlock and alarm indicators.
Blackmagic Universal Videohub 288 Crosspoint lets you build your own broadcast quality 3 Gb/s SDI and optical fiber SDI router for SD, HD, 4:4:4 and 2K video formats.

Universal Videohub frames come in a choice of two sizes that let you expand your router up to either a 72 x 72 or 288 x 288 Crosspoint size.

Every interface module in the router is card based, with each card featuring 4 inputs and 4 outputs. Mix and match interfaces and build a router with all SDI, all optical fiber SDI or a combination of both.

Features:

• Tri-Sync or Blackburst, for external reference (BNC)
• RS-422 port for connecting to third-party control systems
• Blackmagic Universal Videohub 288 Crosspoint
• USB 2.0 for connecting to a host Windows or Mac OS X computer
• Ethernet connection to your local network and Videohub Smart Control
• GPI Alarm connector
• Easy to use handles for removal and insertion of the card module
• 800W main and backup power supply connections
