Neutrik NC3FBH1-E 3 Pole Female XLR Chassis Connector
Neutrik NC3FBH1-E 3 Pole Female XLR Chassis Connector
Out of stock

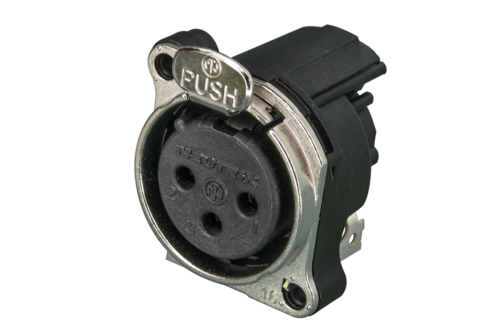

Neutrik NC3FBH1-E 3 Pole Chassis Connector receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount, additional ground contacts
Same as Neutrik NC3FBH1-E 3 Pole Chassis Connector with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.
Features & Benefits
- Five additional ground contacts
- Smallest XLR receptacles, highest packing density
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
- Tulip type female contact
- Housing flammability UL94V-0
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
Pin 1 connected direct to front panel and connector shell, no separate ground contact
