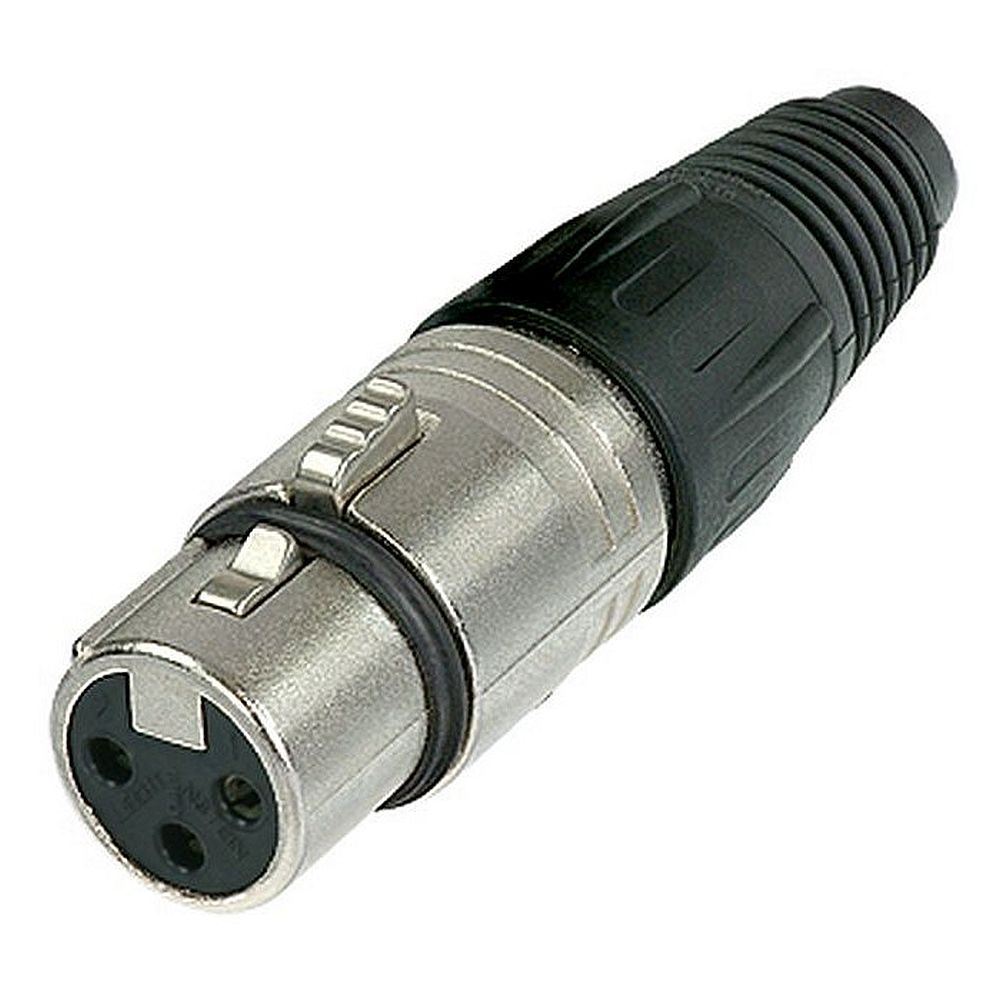

Neutrik NC3FX 3 pole Female cable Connector

Neutrik NC3FX 3 pole female cable connector with Nickel housing and silver contacts.

Call for Price

Neutrik NC3FX – 3 pole Female cable Connector with Nickel housing and silver contacts.

  • Compact design with sturdy diecast shell, fiberglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
  • 3 pole female cable connector with Nickel housing and silver contacts.
  • Rugged Zinc diecast shell long lasting and durable.

Specification:

  • Connection Type: XLR – Female
  • Electrical Capacitance between contacts≤: 4 pF
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V
  • Mechanical Cable: O.D.3.5 – 8.0 mm
  • Insertion force:≤ 20 N – Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize max.: 2.5 mm² – 14 AWG
  • Flammability: UL 94 HB
