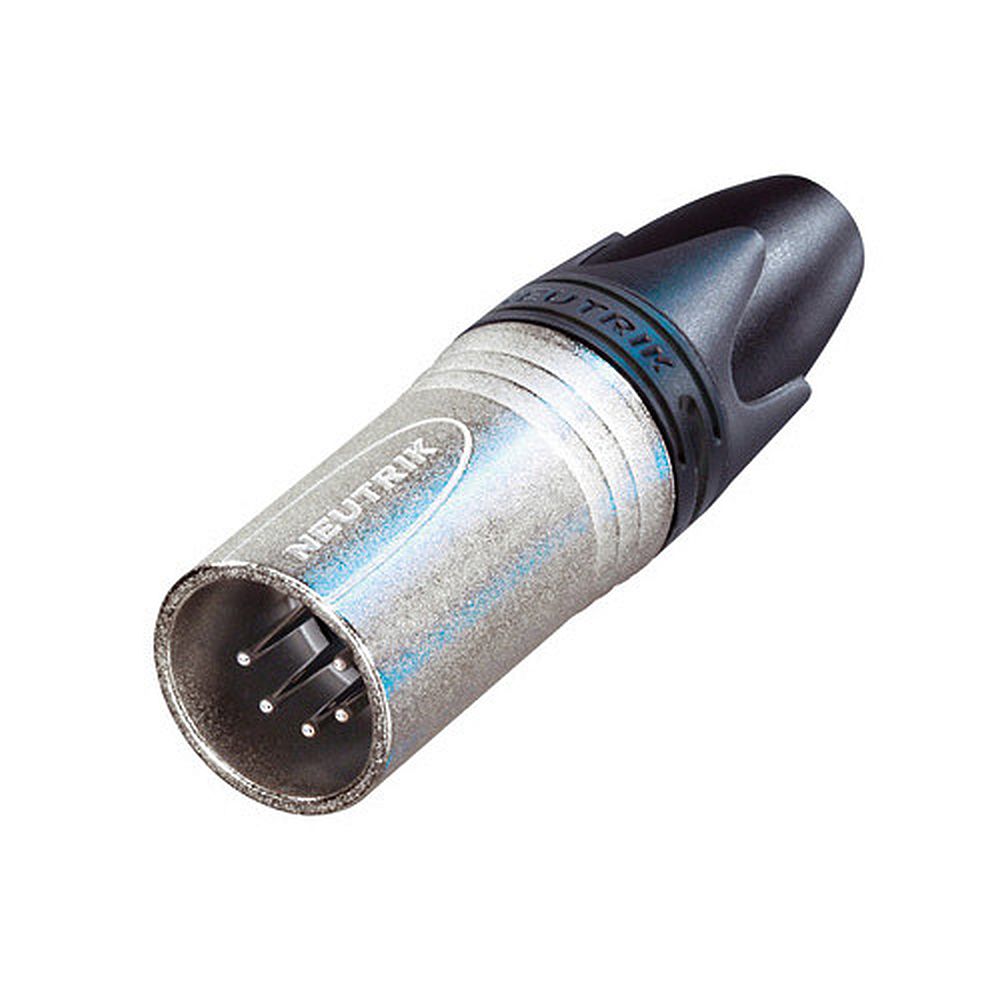

Neutrik NC5MXX 5 pole male cable connector Overview
Featuring a nickel housing, the Neutrik NC5MXX 5 pole male cable connector provides a 5-pin male XLR connection point. It offers silver contacts, a chuck-type strain relief for quick assemblage, a polyurethane gland in its boot to protect against bending stress, and a zinc die-cast shell.
Features:
- Nickel housing and silver contacts
- Locking recess without “window”, more stringent housing increases durability
- Improved chuck-type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design – valuable and handy
- Rugged zinc diecast shell, long-lasting and dependable
- The capacitance between contacts: ≤ 7 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 7,5 A
- Rated voltage: < 50 V
- Cable: O.D. 3.5 – 8.0 mm
- Lifetime: > 1000 mating cycles
- Wire size: max. 1.0 mm² – 18 AWG
