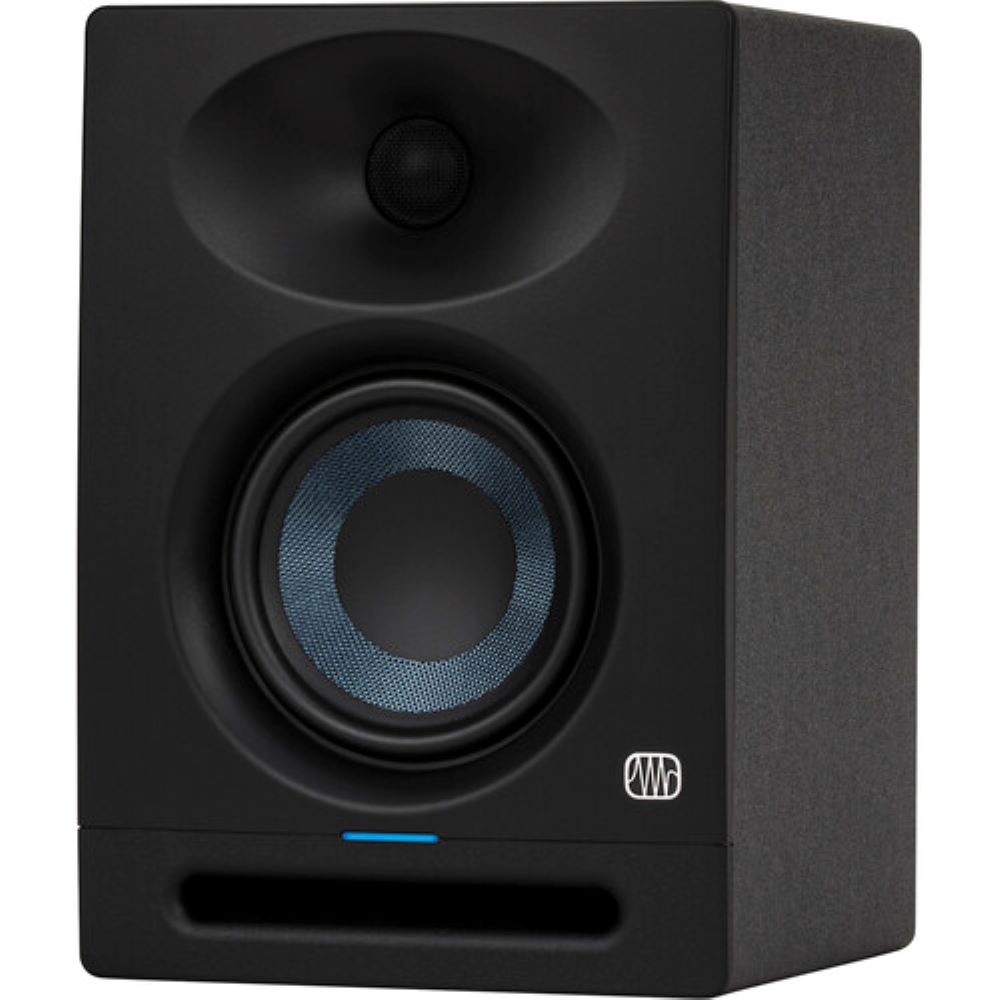

PreSonus Eris Studio 5 Compact 5″ 80W Studio Monitor with EBM Waveguide (Single)

Audio engineers, producers, and musicians looking for a professional studio monitor with a wide stereo image will be impressed with the single PreSonus Eris Studio 5 , an active 2-way studio monitor which provides an expanded and highly accurate frequency response and a wide stereo field, thanks to the custom-designed EBM (Elliptical Boundary Modeled) waveguide, which provides a broad sweet spot. PreSonus Eris Studio 5 compact studio monitor is well suited in both home studios and professional mix rooms.

Two silk dome tweeter, which offers a snappy, accurate transient response. PreSonus Eris Studio 5 offers a frequency response from 20 kHz down to 48 Hz for a full-range sound with plenty of volume (102 dB SPL).

The rear panel provides acoustic tuning controls including a three-position Acoustic Space switch that helps compensate for the boundary bass boost that can occur when a monitor is placed in a corner or near a wall. High and Mid controls help to further mitigate room anomalies, while a low cutoff filter makes it easy to integrate a subwoofer into your monitor setup.

PreSonus Eris Studio 5 Key Features at a Glance

• 5.25″ woven composite low-frequency driver
• 1″ ultralow mass, silk-dome, high-frequency driver
• Crossover Frequency, 3.5 kHz
• 100 x 60° EBM waveguide provides a sweet spot
• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
• 80W, Class AB dual amplification
• 48 Hz to 20 kHz frequency response
• 102 dB Peak SPL (at 1 m)

Acoustic Tuning Controls:

• Acoustic Space (Flat, -2 dB, -4 dB)
• High Frequency (±6 dB, center 10 kHz, continuously variable)
• Mid Frequency (±6 dB, center 1 kHz, continuously variable)
• Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

 Inputs:

• • XLR and 1/4-inch TRS balanced rear-panel inputs
  • RCA unbalanced rear-panel inputs
