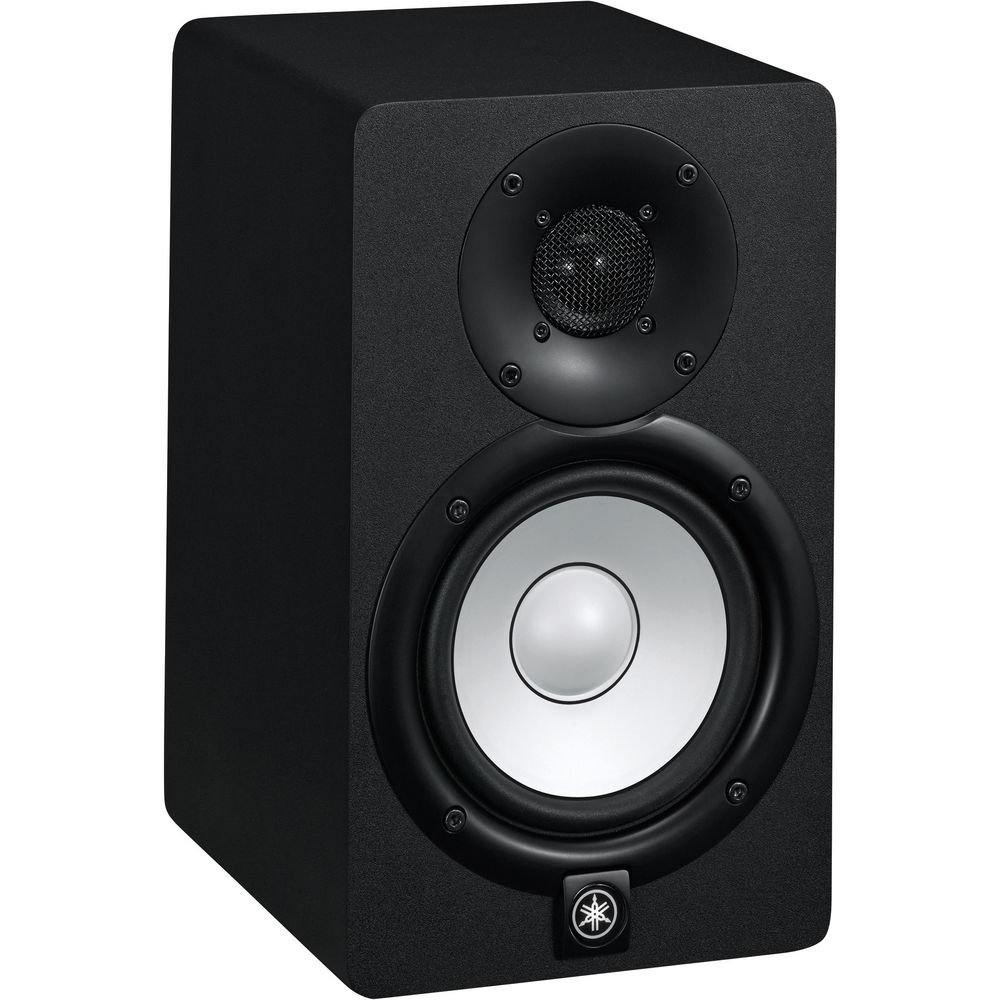

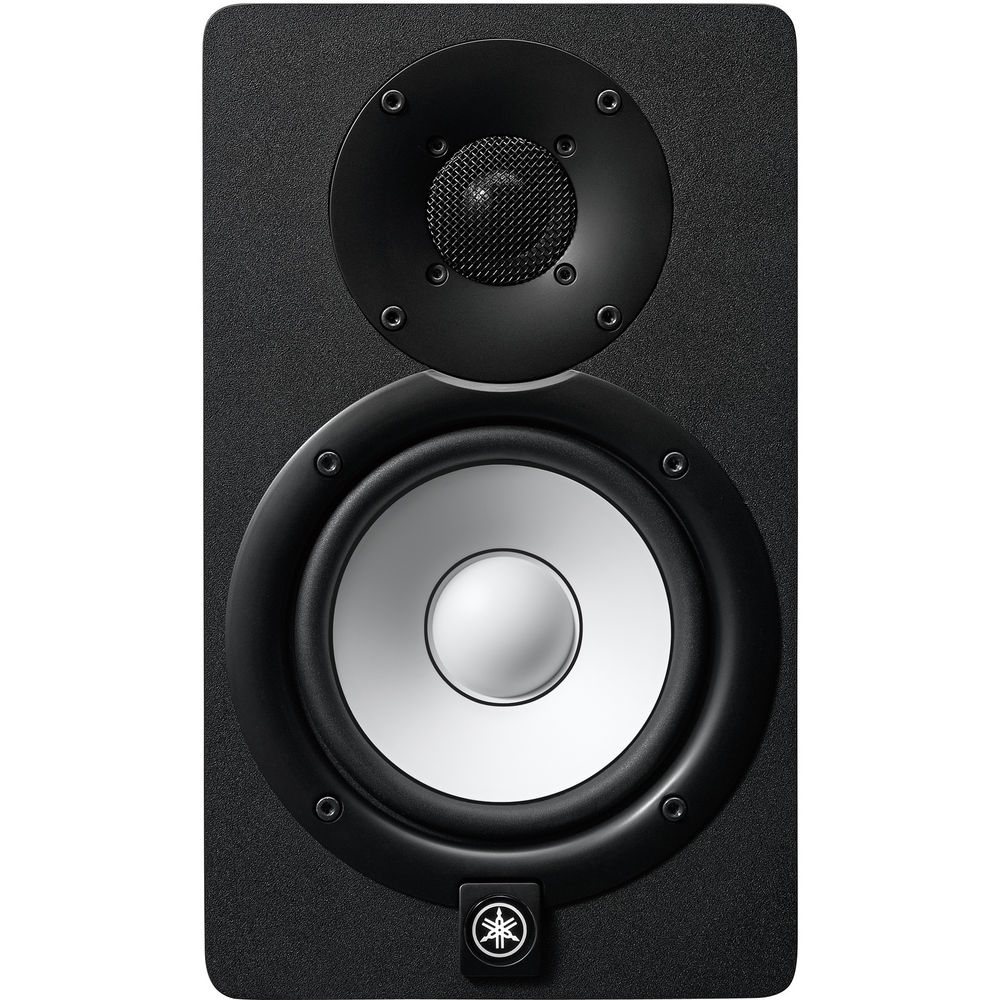

Yamaha HS5 Powered Studio Monitor (Black)

Name: Buy Yamaha HS5 Powered Studio Monitor Black - Ion
Brand: Yamaha
SKU: HS5
Price: 185000 PKR
Availability: InStock

₨185,000

The black HS5 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction.

Key Features

70W Total Output
5″ Cone Woofer
1″ Dome Tweeter
Room Control Response Switch

SKU: HS5 Category: Studio Monitors

The Yamaha HS5 Powered Studio Monitor Black from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction.

Yamaha HS5 Powered Studio Monitor Black is capable of up to 70W of total output and features a 5-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30kHz.

The Yamaha HS5 Powered Studio Monitor Black has both an XLR and 1/4″ TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.

Low Resonance Enclosure Design

Yamaha HS5 Powered Studio Monitor Black cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response.

HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound

Noise Reduction Technology

Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise.

By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha’s engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB

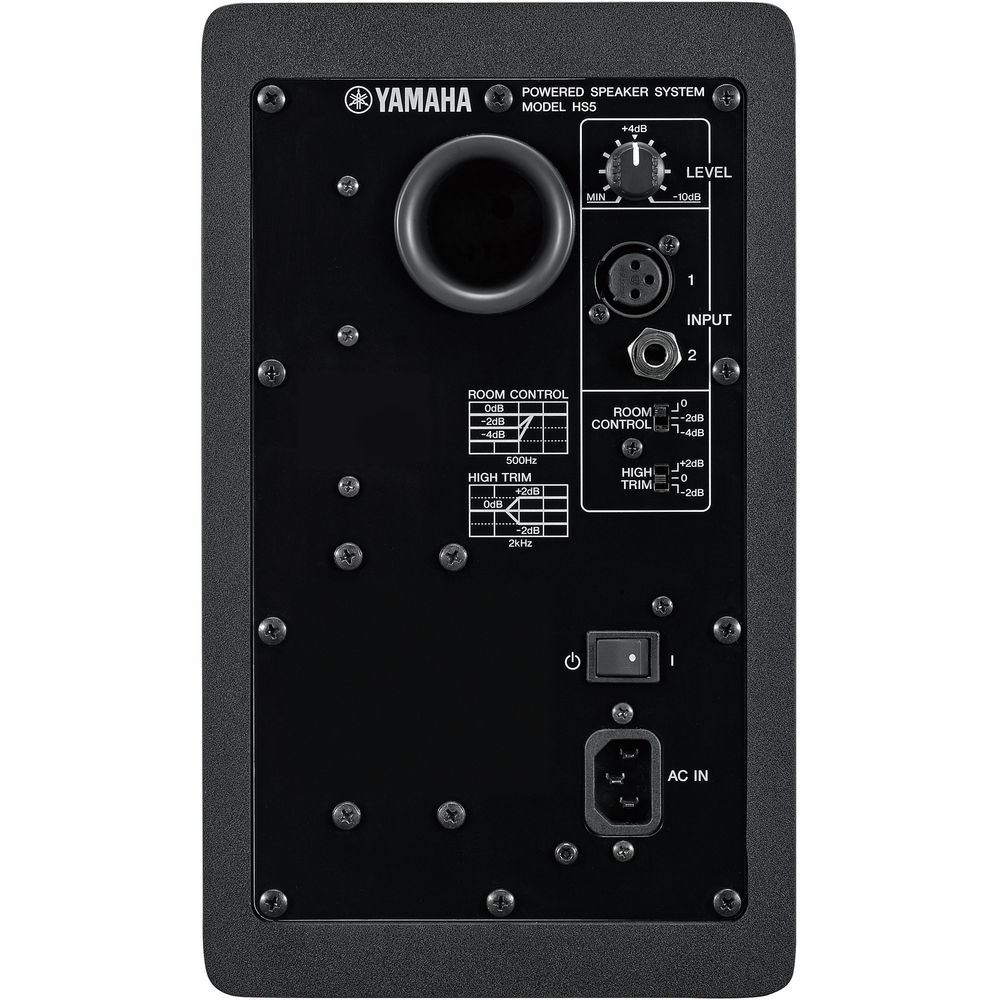

Controls and Connectivity

HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size.

ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response.

For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks

Brand	Yamaha
Monitor Type	Active 2-Way
Enclosure	Bass-Reflex
Power Rating	70 W
Impedance	4 Ohms
Drivers	LF Driver: 1 x 5" / 12.7 cm Cone HF Driver: 1 x 1" / 2.54 cm Dome
Amplification	1 x LF Amplifier: Class-D Rated at 45 W 1 x HF Amplifier: Class-D Rated at 25 W
Frequency Range	74 Hz to 24 kHz (at -3 dB) 54 Hz to 30 kHz (at -10 dB)
Analog Input Sensitivity/Gain	-10 dBu
Phase Adjustment	None
EQ	1 x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Increments) 1 x HF Shelf: -2 to +2 dB at 2 kHz (2 dB Increments)
Filters	None
Parametric EQ	None
Crossover Frequency	2 kHz
I/O	1 x XLR Balanced Female Analog Input (10 Kilohms) 1 x 1/4" TRS Balanced Female Analog Input (10 Kilohms)
Power Consumption	45 W
Enclosure Material	MDF
Mounting Points	None
Dimensions (W x H x D)	6.7 x 11.2 x 8.7" / 17 x 28.5 x 22.2 cm
Weight	11.7 lb / 5.3 kg
Package Weight	16.2 lb
Box Dimensions (LxWxH)	16.4 x 12 x 10.2"
Size	5"
