Yamaha HS8 Powered Studio Monitor

Name: Buy Yamaha HS8 Powered Studio Monitor - Ion
Brand: Yamaha
SKU: HS80M

Call for Price

The HS8 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction.

Key Features

120W Total Output
1″ Dome Tweeter
High Trim
1x 1/4″ TRS Input

8″ Cone Woofer
Room Control Response Switch
1x XLR Input
Low Resonance Enclosure

Out of stock

SKU: HS80M Category: Studio Monitors

The Yamaha HS8 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 120W of total output and features.

An 8-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30kHz. The HS8 has both an XLR and 1/4″ TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.

Low Resonance Enclosure Design

Yamaha HS8 Powered Studio Monitor cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response.

HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound

Noise Reduction Technology

Yamaha HS8 Powered Studio Monitor port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise.

By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha’s engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB

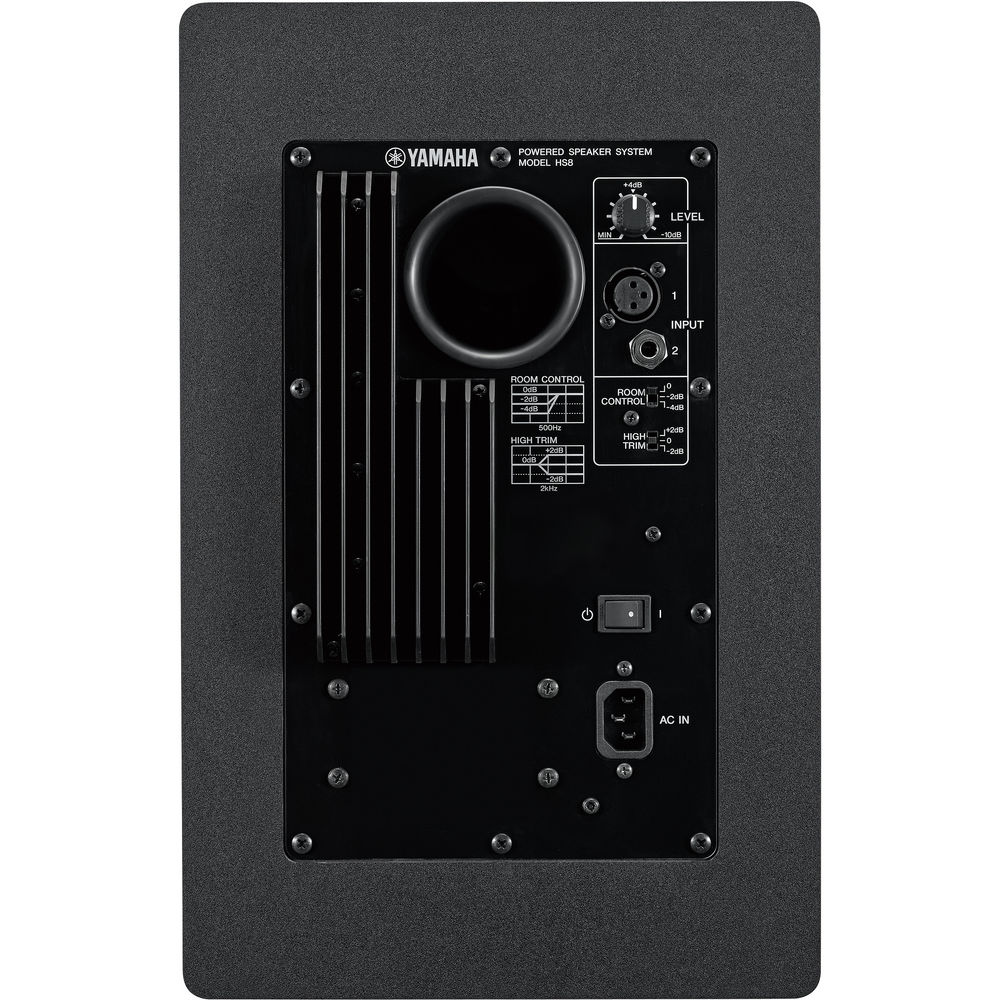

Controls and Connectivity

Yamaha HS8 Powered Studio Monitor full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size.

ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response.

For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks

Weight	13 kg
Brand	Yamaha
System Type	2-Way Bi-Amped Powered Studio Monitor
Frequency Response	38 Hz to 30 kHz
Crossover Frequency	2 kHz
Transducer	LF: 8" (127 mm) Cone HF: 1" (25 mm) Dome
Output Power	Total: 120W LF: 75W HF: 45W
Input Sensitivity	-10 dBu / 10 kΩ
Inputs	1x Balanced XLR3-31 Type 1x 1/4" (6.35 mm) Balanced TRS
Controls	Level Control (+4 dB/Center Click) EQ: High Trim Switch (+/- 2 dB @ HF) Room Control Switch(0, -2, -4 dB under 500 Hz)
Indicators	1x Power On White LED
Power Consumption	60 W
Enclosure	Type: Bass-Reflex Material: MDF
Dimensions (WxHxD)	9.8 x 15.4 x 13.1" (250 x 390 x 334 mm)
Weight	22.5 lb (10.2 kg)
Packaging Info	–
Package Weight	28.8 lb
Box Dimensions (LxWxH)	21 x 16.2 x 14.3"
Size	8"
