Blackmagic Design ATEM Production Studio 4K Live Switcher

The Blackmagic Design ATEM Studio 4K Live Switcher is a live event multi camera production switcher with 8 individual Ultra HD inputs built into a 1RU chassis.

Supporting NTSC/PAL/HD and Ultra HD video formats via Four Single Link 6G-SDI and Four 4K HDMI inputs, the switcher.

Blackmagic Design ATEM Studio 4K Live Switcher Connects to a wide range of cameras and sources, delivering a single program stream in SD, HD, or Ultra HD video. All this is done live and in real time with no rendering required.

The Blackmagic Design ATEM Studio 4K Live Switcher features a reference video input for synchronizing the switcher to other equipment using Tri-level or Blackburst Sync.

Each input also features its own frame synchronizer, which allows you to use cameras that do not feature Genlock as well as input video from computer sources. The switcher can handle inputs from all inputs at the same time.

The switcher provides six video outputs that are always active. Featuring one SDI and one HDMI Program output , both of which deliver SD/HD/Ultra HD.

With one Aux SD/HD/Ultra HD Output that can deliver a clean Program feed without any downstream effects, as primary outputs.

The Blackmagic Design ATEM Studio 4K Live Switcher also features an HD only Program output signal for monitoring on an SDI-equipped HD monitor.

Multiview monitoring is also HD only over dedicated SDI or HDMI output, and Multiview allows you to view the Program, Preview, six active inputs and two graphic channels (media players) on one screen at the same time.

The Blackmagic Design ATEM Studio 4K Live Switcher features a built-in compliment of one Upstream and two Downstream keyers for real time effects and composites in Ultra HD, with 10-bit processing.

The two downstream keyers allow you to use two graphics/logos/titles/lower thirds from up to twenty stored graphics in a wide variety of formats.

A built-in two channel audio mixer handles the embedded HDMI and SDI audio from the six active video inputs as well as audio from the balanced and unbalanced analog audio inputs to provide you flexibility and creative audio options.

Audio output is embedded in the SDI and HDMI stream, as well as available via balanced audio outputs. Either a Mac or PC running the included ATEM Software controls the switcher’s operation and settings.

For those who like the feel of a physical control panel, available ATEM Broadcast Panels, connected via the Ethernet port, also control all the features of the switcher.

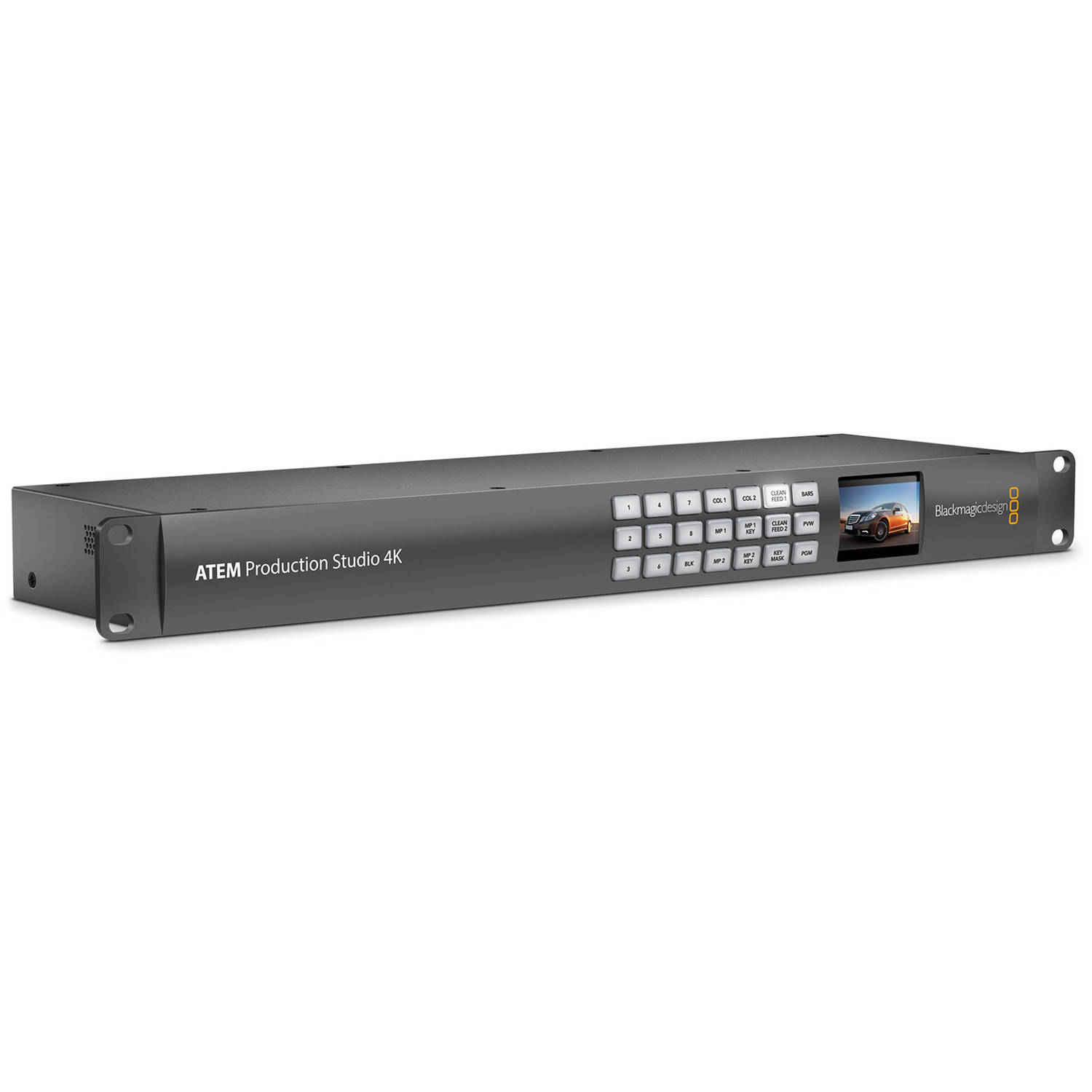

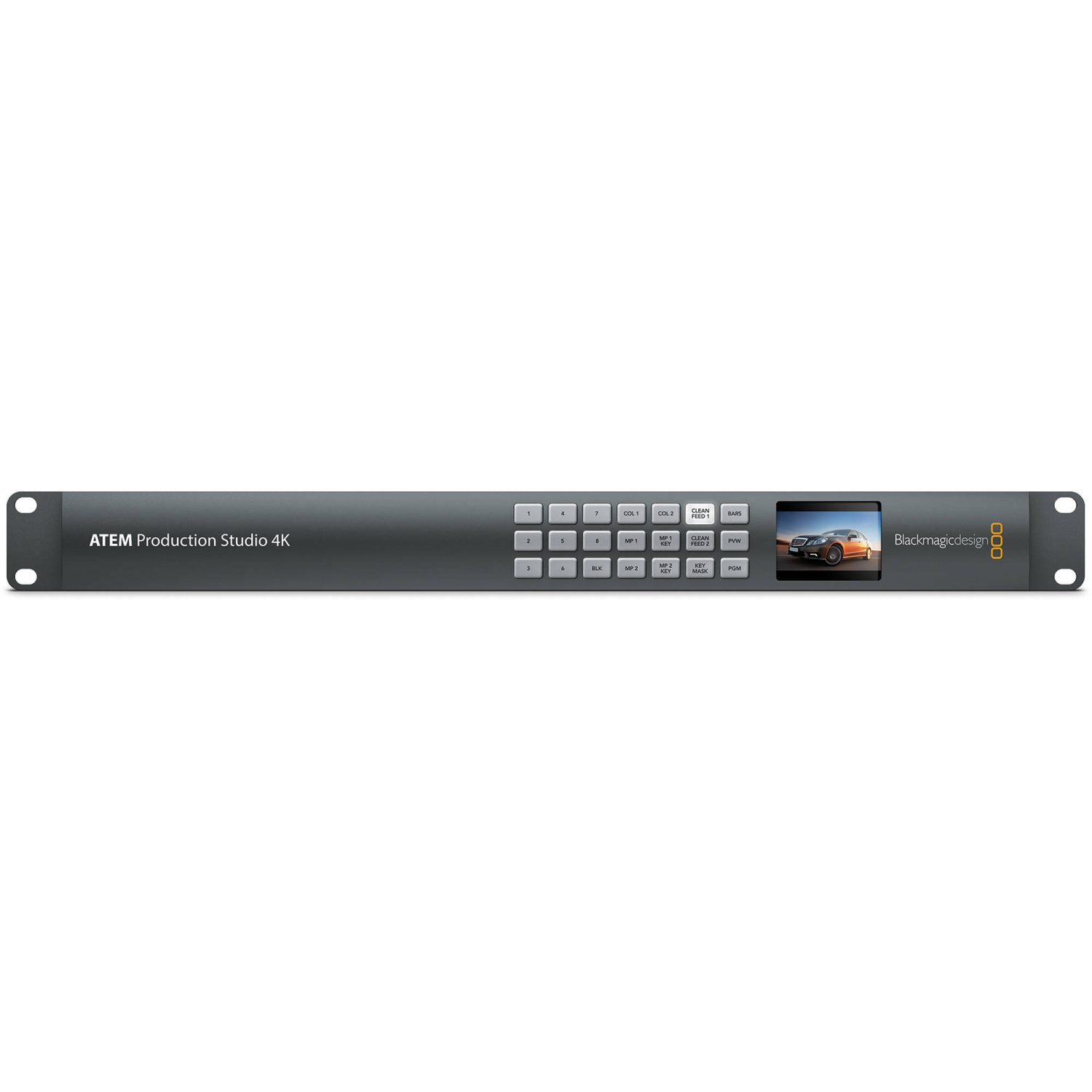

Illuminated front panel buttons allow you to locally select the Aux output, while a two inch LCD screen built into the front of the unit allows you to see the Aux output for instant confirmation of the correct output.

Video

• The Blackmagic Design ATEM Studio 4K Live Switcher supports 4K Ultra HD video (3840 x 2160), which is four times the resolution of Full HD. It has eight video inputs, all of which can be active simultaneously.

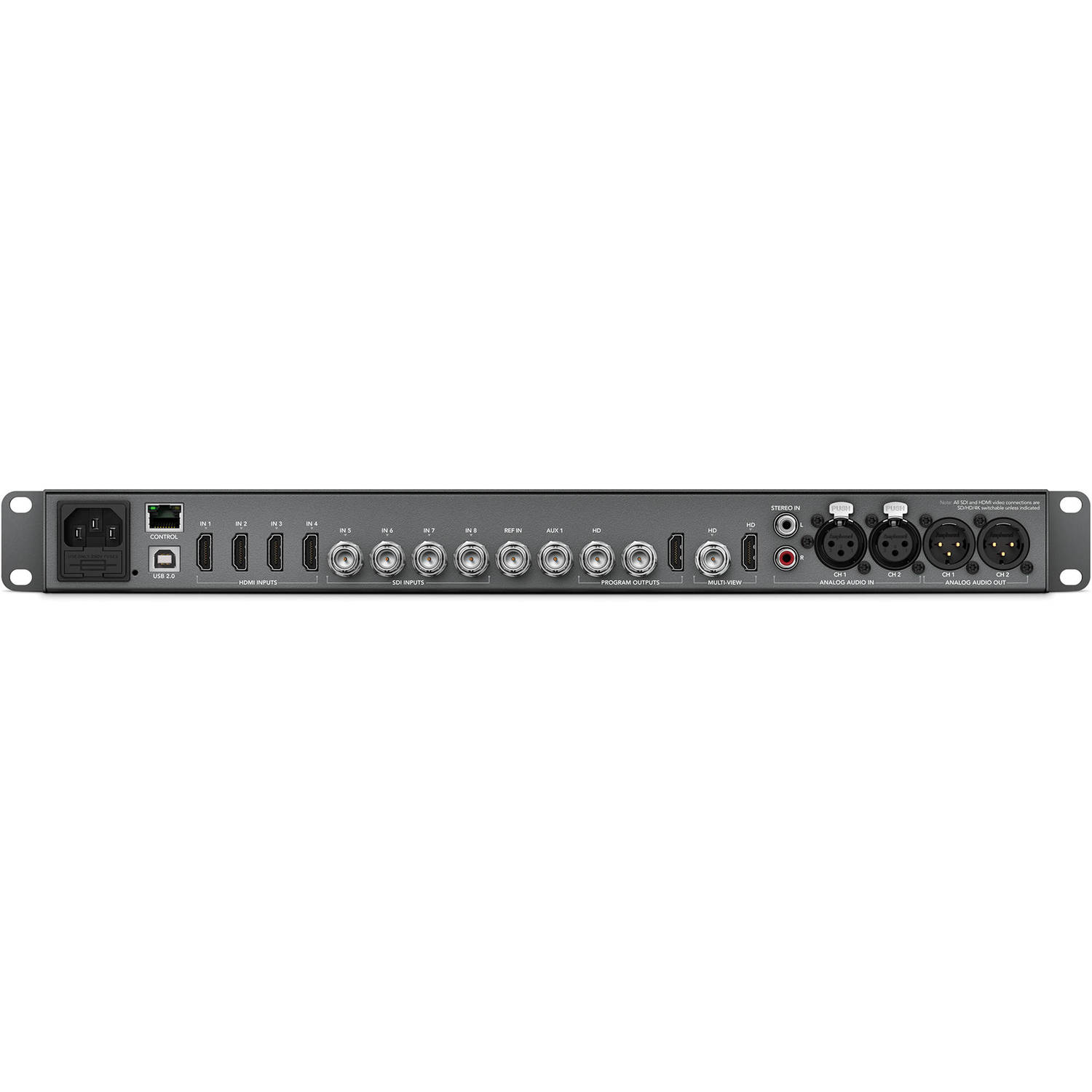

• The Blackmagic Design ATEM Studio 4K Live Switcher features four single link 6G-SDI and four HDMI 4K inputs, which allows you to connect SD/HD/Ultra HD and computer-based signal to the switcher. Although the switcher takes reference video in for sync timing so that it can interface with other post production equipment, each input has its own Frame synchronizer, which enables you to use cameras that do not have genlock capability or for input of computer sources such as Keynote or PowerPoint Presentations
• The capture video format is set by the user, and must be the same across each input, as the switcher cannot scale different input formats to match the project format.
