Blackmagic Design HyperDeck Studio HD Plus

SKU: HYPERD/ST/DCHP Category: Tags: , , , ,

The Blackmagic Design HyperDeck Studio HD Plus. The 1 RU tall recorder is 1/2 of a rack wide and powers from 100 to 240 VAC or via an optional 12 VDC power supply for portability.

Key Features:

  • Records up to 4K DCI at 30 fps
  • Plays Back up to 3840 x 2160 at 30 fps
  • 1 x 6G-SDI Input, 1 x HDMI 2.0 Input
  • 1 x HDMI 2.0 and 2 x 6G-SDI Outputs

Call for Price

Take a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Plus. Two SD card slots allow you to capture with virtually unlimited record time, and the unit also supports recording to USB disks via the USB Type-C output port.

UHD 4K Recording and Playback

The HyperDeck Studio HD Plus records UHD and DCI 4K video at up to 30 fps. The 6G-SDI outputs allow fill and key playback up to 1080p60.

Video Inputs

6G-SDI, and HDMI 2.0 inputs

Video Outputs

Two SDI outputs support 1080p60 and 2160p30, and a loop-through output sends the input signal downstream to monitors, switchers, or other devices.

HDR

The HyperDeck Studio HD Plus supports HDR video and 33-point LUTS on the 3G-SDI output.

Supported Codecs

ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.

DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps

H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60.

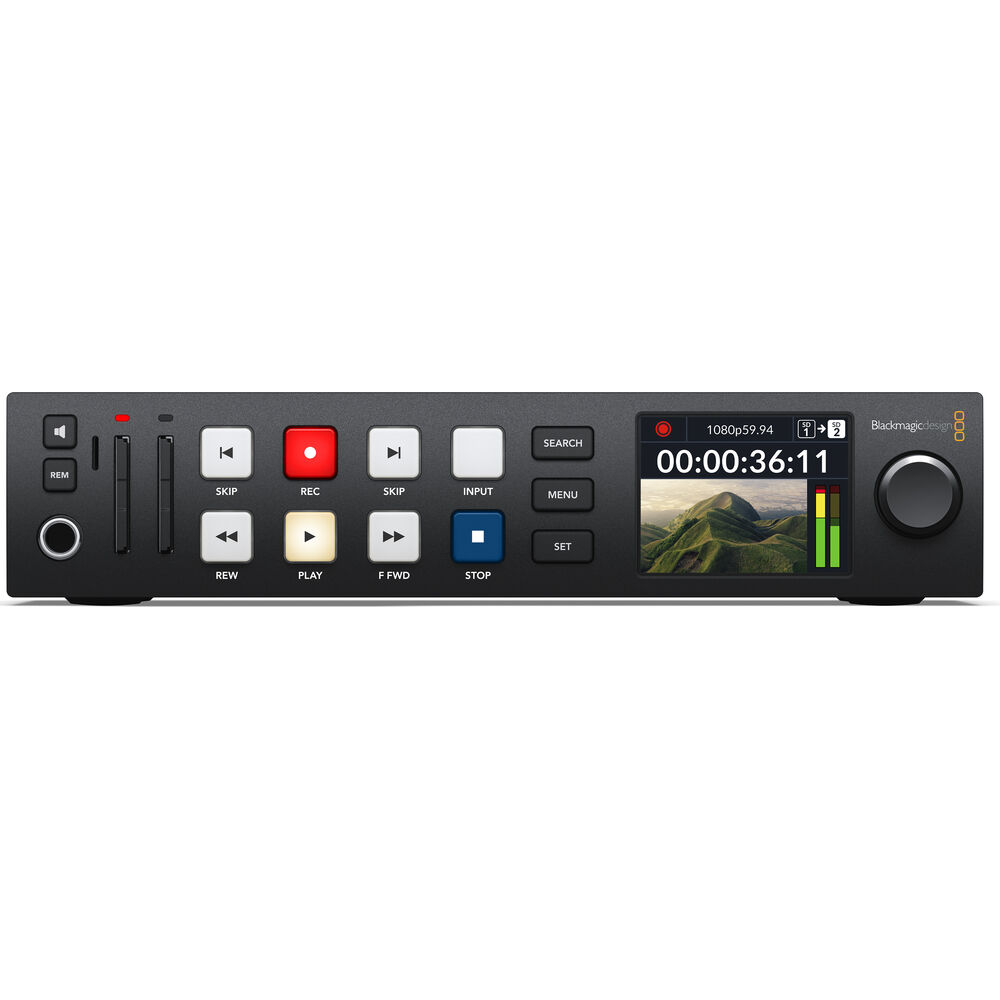

VTR-Style Controls

Features VTR-style front-panel controls for record and playback; a built-in jog/shuttle wheel provides analog-style control over your playback. Broadcast-style deck control front-panel buttons connect to a dedicated RS-422 output.

Remote

The unit is controllable via RS-422 control and over the Ethernet or USB port.

Built-In LCD Monitor

The unit’s front panel also features a built-in LCD screen that allows you to monitor input or play back video.

Audio Output

The unit features a built-in speaker as well as a 1/4″ headphone jack.

Included Software

The HyperDeck Studio HD Plus includes Blackmagic OS and Blackmagic HyperDeck Setup.

Brand

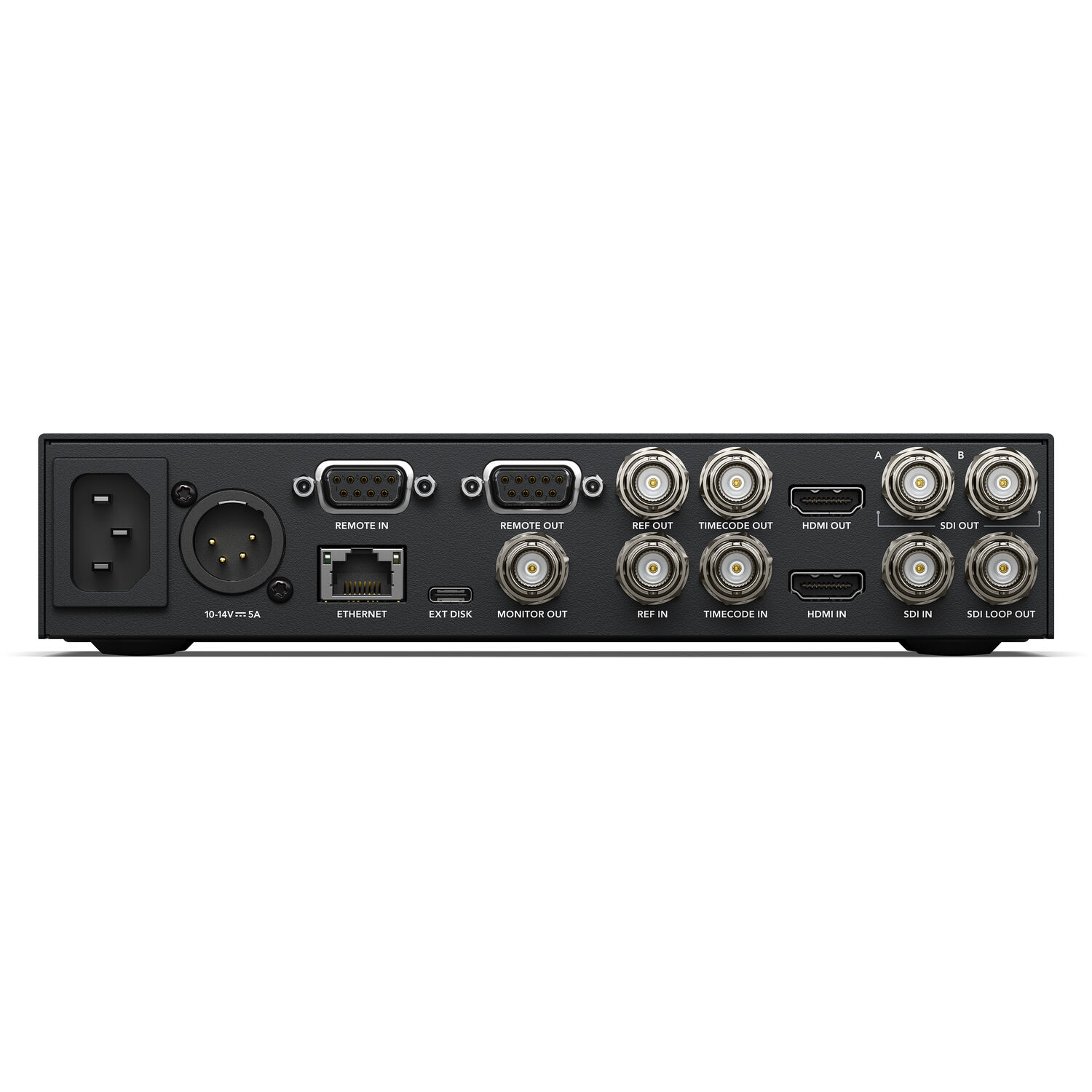

Video Input

1 x BNC, 6G-SDI
1 x HDMI 2.0 Type A

Video Output

1 x BNC, 6G-SDI Loop-Out
2 x BNC, 6G-SDI
1 x HDMI Type A, 2.0
1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI)
1 x BNC, 3G-SDI (Monitor Out)

Timecode

In: 1 x BNC
Out: 1 x BNC

Reference

Tri-Sync or Black Burst
Input Connector: 1 x BNC
Output Connector: 1 x BNC

Audio Input

None (Embedded Audio Only, 16 Channels)

Audio Output

Headphone: 1 x 1/4" Phone

Device Control

2 x RS-422 Deck Control Port on DB9 Female

Ethernet

1 x RJ45 for Remote Operation

Media Interface

2 x SD Slots
Media Type: UHS I and UHS II
Format: ExFAT or HFS+

Supported Resolutions

4K
4096 x 2160p: 30/29.97/25/24/23.98
3840 x 2160p: 30/29.97/25/24/23.98

2K
2048 x 1080p: 0/29.97/25/24/23.98

HD
1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50

SD
NTSC
PAL

SDI Compliance

SMPTE 259M//292M/296M/372M/424M/425M Level A and B
SMPTE 2084
SMPTE 2108‑1

Video Sampling

4:2:2 YUV

Color Depth

10-Bit

Color Space

Rec. 601
Rec. 709
Rec. 2020
33-Point 3D LUTS Can Be Applied to SDI Monitor Out

HDR Support

Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084

Multi Rate Support

Autodetection of SD, HD, and 6G-SDI

Audio Sampling

Television Standard 48 kHz, 24-Bit

Supported Codecs

ProRes
HQ QuickTime
422 QuickTime
LT QuickTime
Proxy QuickTime for Formats up to 1080p60

DNxHD
220x
220x MXF
145
145 MXF
45
45 MXF for 720p and 1080p HD Formats up to 60 fps

H.264
SDI 4:2:2 10-Bit
High 4:2:0 8-Bit
Medium 4:2:0 8-Bit
Low 4:2:0 8-Bit for Progressive Formats up to 1080p60

Operating System

macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later
Windows: 10 64-Bit

Rack Height

1 RU

Power Supply

AC
100 to 240 VAC, 50/60 Hz

DC
12 VDC; 1 x 4-Pin XLR

Consumption
100 W Max

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Relative Humidity

0 to 90% Non-Condensing

Dimensions

8.27 x 6.96 x 1.74" / 21.01 x 17.68 x 4.42 cm

Weight

1.8 lb / 0.82 kg

Package Weight

3.285 lb

Box Dimensions (LxWxH)

10.5 x 10.5 x 3.5"

  • Blackmagic Design HyperDeck Studio HD Plus
  • Software CD
  • Limited 1-Year Warranty
