Blackmagic Design HyperDeck Studio HD Pro

SKU: HYPERD/ST/DFHP Category: Tags: , , , ,

The Blackmagic Design HyperDeck Studio HD Pro is an updated 1 RU file-based deck that features the same functionality and control of professional tape decks in a digital design.

Key Features:

  • 1 RU File-Based Video Recorder
  • Uncompressed & H.264 10-Bit 4:2:2 Video
  • Records Compressed in ProRes / DNxHD
  • 2 x 2.5″ SSD Slots and 2 x SD Card Slots

Call for Price

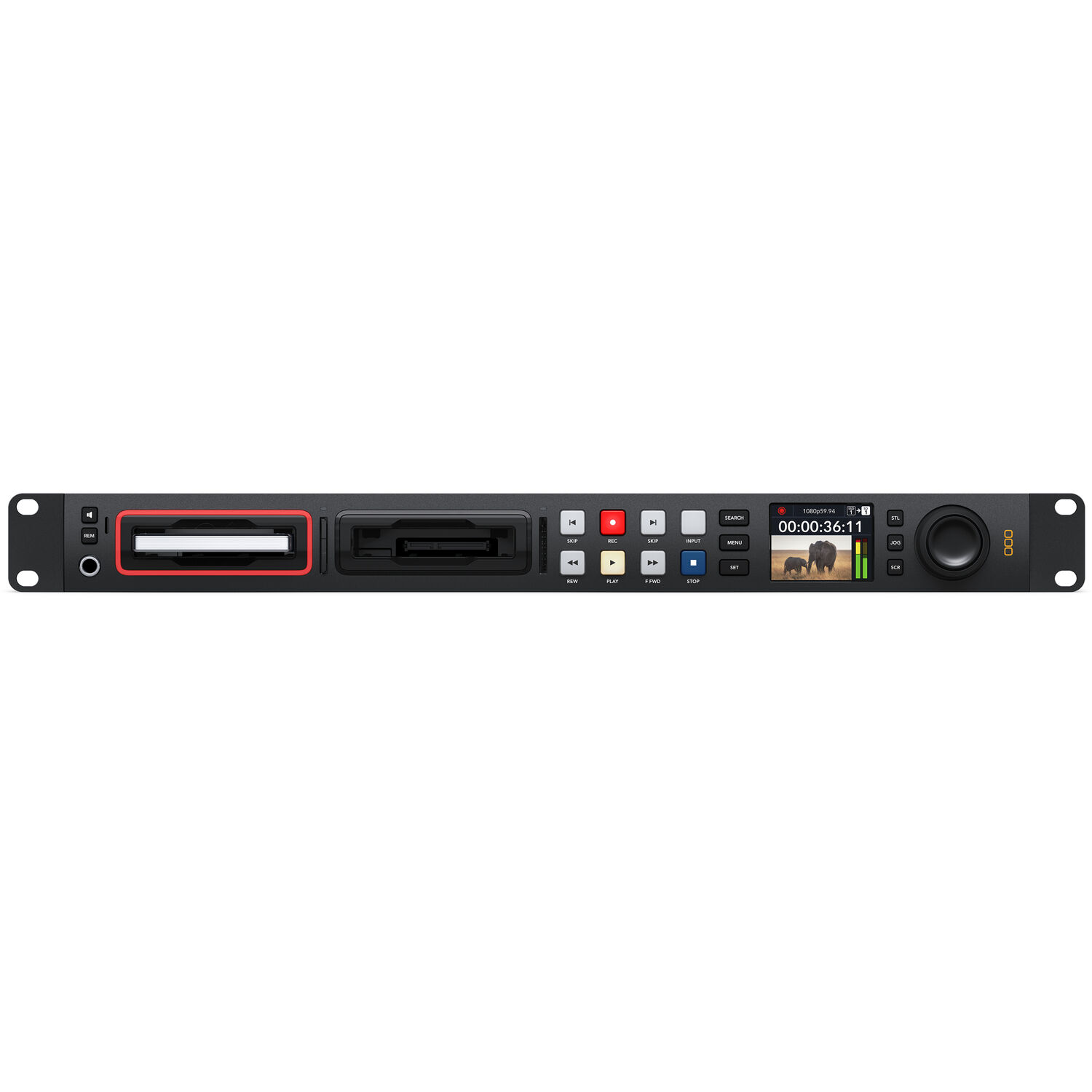

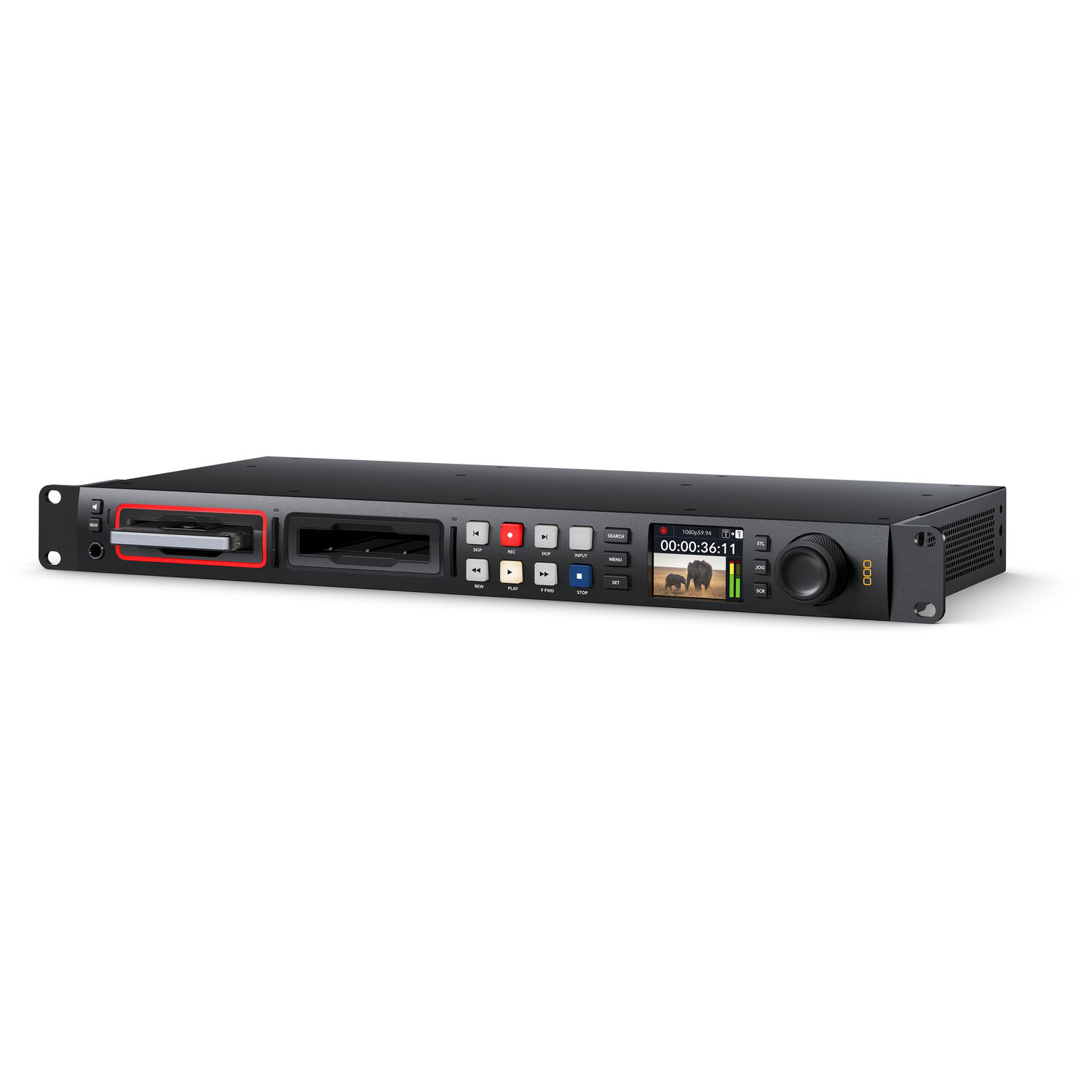

The Studio HD Pro is a 1 RU rack-mountable unit, with built-in rack mount ears. It features illuminated front panel button control and a heavy jog/shuttle wheel for analog scrubbing. RS-422 control is supported for external control using the Ref input and output ports. The USB Type-C port allows you to record to external disks, and you can also use it to plug into a computer to use as a source for a web stream. An integrated LCD on the front panel allows you to monitor the video and display timecode and transport information.

Key Features:

  • Professional Broadcast Deck
  • Mastering Recorder
  • ISO Recording
  • Digital Signage
  • Broadcast Archive
  • Bright Color LCD Status Display
  • Traditional Broadcast Deck Controls
  • Supports SD Cards, UHS-II Cards, or SSDs
  • Dual Media Slots for Nonstop Recording
  • Record to External USB Type-C Media Disks
  • Popular ProRes, DNx, and H.264 Files
  • Advanced Broadcast Connections
  • Choose 3G-SDI, 6G-SDI, or 12G-SDI Models
  • Fill and Key Outputs for Broadcast Animations
  • USB Webcam Output for Video Software
  • Advanced HDR Support and Monitoring 3D LUTs
  • Includes Professional Multi-Channel SDI Audio
  • Incredibly Fast Network File Transfers
  • Traditional RS-422 Broadcast Deck Control
  • Built-In Timecode and Sync Generators
  • Blackmagic OS
  • Localized for 13 Popular Languages
  • Use All Video Software and Streaming Sites
  • Built-In Redundancy Keeps You on Air
  • Designed for Both Portable or Rackmount Use
  • Compatible with Switchers, Disk Docks, and Cameras

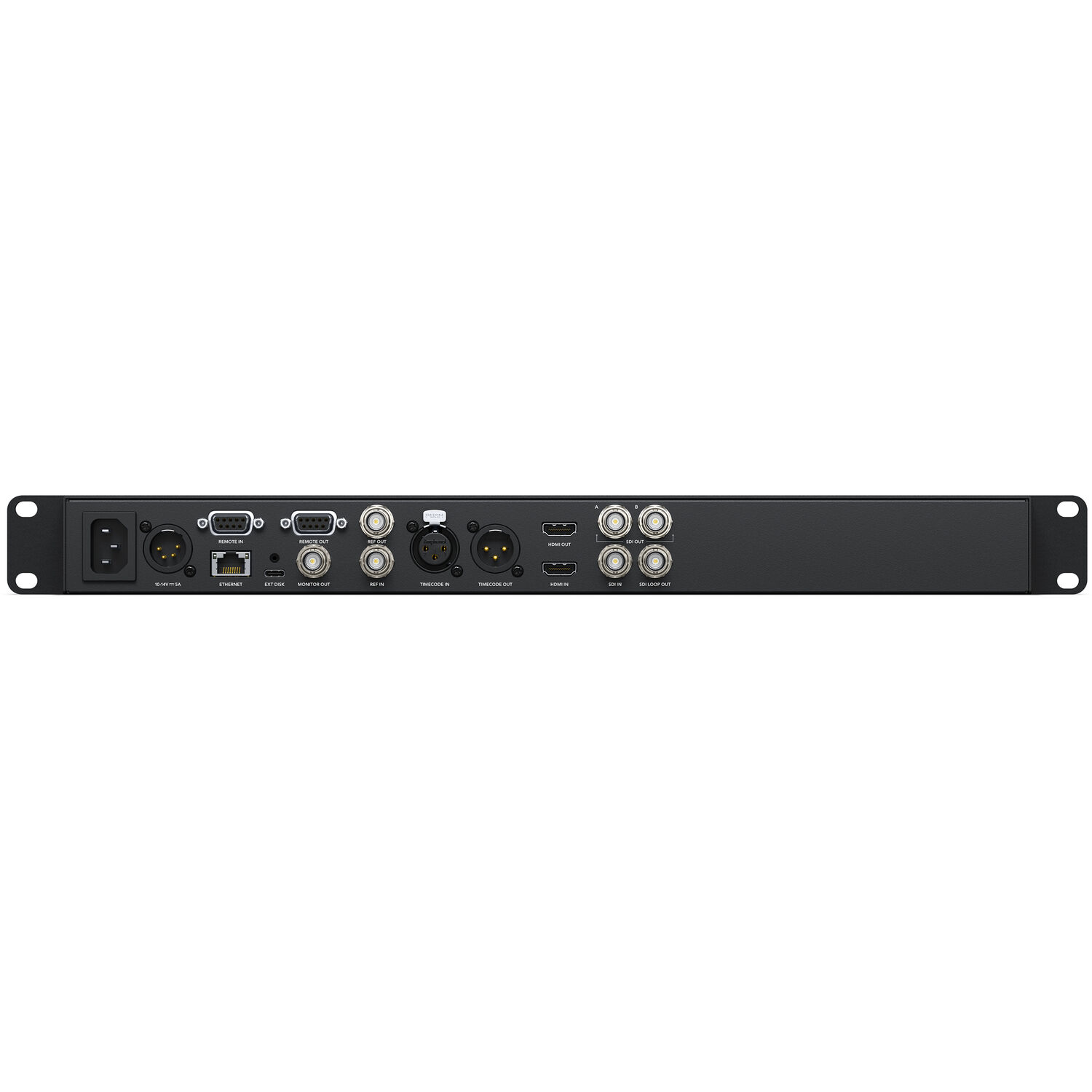

Brand

Video Input

1 x BNC 6G-SDI
1 x HDMI 2.0

Video Output

1 x BNC SDI Loop-Through
2 x BNC 6G-SDI
1 x SDI Monitor Output
1 x HDMI 2.0

Embedded Audio

Input:
16 x Channels SDI
16 x Channels HDMI

Output:
8 x Channels SDI
8 x Channels HDMI

Audio Output Connector

1 x 1/4" Headphone Jack

Network

1 x RJ45 1 Gb/s

SSD Interface

2 x 2.5" SATA 3Gb/s

Reference Input

1 x BNC

Reference Output

1 x BNC

Timecode Input

1 x BNC

Timecode Output

1 x BNC

Device Control

1 x RS-422 Input
1 x RS-422 Output

Display Size

2.2" LCD

Speaker

Mono

Format Support

DCI/UHD 4K 2160p: 30/29.97/25/24/23.98
2K 1440p: 30/29.97/25/24/23.98
1080p: 60/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC/PAL
525i 59.94
625i 50
480p60 and 576p50 via HDMI only

Supported Operating Systems

macOS 10.15 Catalina
macOS 11.1 Big Sur or Later
Windows 10, 64-Bit

Other Outputs

1 x USB Type-C for External Recording or Webcam Use

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, and SMPTE 2108-1

Sampling

Video: 4:2:2 YUV
Audio: 24-Bit, 48 kHz

Color Precision

10-Bit

Color Space

REC 601, REC 709, REC 2020
3D LUTS can be Applied to SDI Monitor Out

Multiple Rate Support

Auto-Detection of SD, HD and 6G-SDI

HDR Support

Hybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084

Codecs Supported

ProRes HQ QuickTime
ProRes 422 QuickTime
ProRes LT QuickTime
ProRes Proxy QuickTime for all Formats up to 2160p30

Playback only of:
ProRes 4444 QuickTime up to 1080p60 with Auto Routing of Fill and Key over SDI A and B Outputs
DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD Formats up to 60 fps

DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p Formats up to 30 fps

H.264 SDI 4:2:2 10-Bit, H.264 High 4:2:0 8-Bit, H.264 Medium 4:2:0 8-Bit, H.264 Low 4:2:0 8-Bit for all Progressive Formats up to 1080p60

Media Slots

2 x 2.5" SSD
2 x SD Card

Rack Size

1 RU

Power Input

1 x 110 to 240 VAC, 50/60 Hz Power Input
1 x 12 VDC, 4-Pin XLR Input

Power Consumption

100 W Maximum

Operating Temperature

32to 104°F/ 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Relative Humidity

0 to 90% Non-Condensing

Dimensions

19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.4 cm

Weight

4.65 lb / 2.1 kg

Package Weight

6.23 lb

Box Dimensions (LxWxH)

20.9 x 10.5 x 3.6"

  • Blackmagic Design HyperDeck Studio HD Pro
  • Limited 1-Year Warranty
