Blackmagic Design SmartView 4K 2 15.6″ DCI 4K Broadcast Monitor

The blackmagic design SmartView 4K Monitor is a professional 15.6″ TFT LCD monitor with a native resolution of 3840 x 2160 and two multi-rate 12G-SDI inputs.

The inputs automatically switch between SD, HD, and blackmagic design SmartView 4K Monitor formats, including up to DCI 4K (4096 x 2160) at 60 fps. An SMPTE-compatible optical fiber socket enables you to add a separate module for SDI fiber input.

The SmartView blackmagic design SmartView 4K Monitor machined metal frame provides built-in control buttons for access to advanced broadcast features including 3D LUTs, H/V delay, blue channel only, and customizable frame markers.

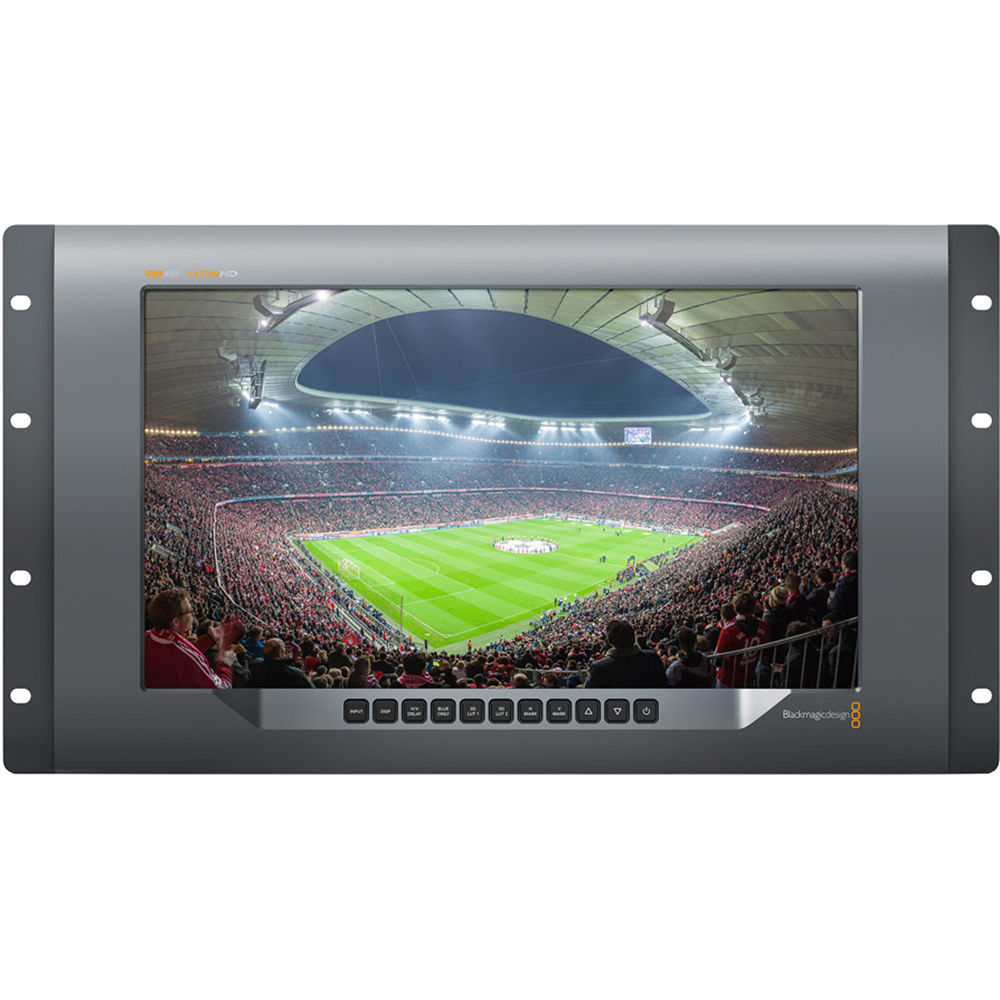

The chassis is rack-mountable (6 RU) and also has VESA mounting holes for installation on articulating arms.

When monitoring SD, 720p, or 1080p SDI sources, the built-in Teranex processor uses Blackmagic’s Pixel Motion algorithms to automatically deinterlace and scale video up to UHD blackmagic design SmartView 4K Monitor.

This gives users optimum image quality, even when working with lower-resolution images. In addition to the front panel buttons, the monitor can be controlled remotely via the rear Ethernet connection using .

The downloadable Mac or Windows software, ideal for hard-to-reach setups. With both AC power as well as 12 VDC power inputs, the SmartView 4K is well suited for use in the studio or on the set.

Features

DCI 4K Resolution

The 15.6″ active matrix TFT LCD screen provides bright viewing with wide viewing angles. Its native 3840 x 2160 resolution displays every pixel from footage with a resolution up to DCI 4K60.

blackmagic design SmartView 4K Monitor also provides high-quality upscaling of SD and HD footage to UHD 4K, letting the SmartView 4K fit into existing and future workflows.

Connections

The SmartView blackmagic design SmartView 4K Monitor features two multi-rate 12G-SDI inputs, letting you select between two different sources with the push of a button.

The connections automatically detect and re-clock between single-link SD, HD, and 3G/6G/12G-SDI formats, supporting resolutions from SD to blackmagic design SmartView 4K Monitor (4096 x 2160) at 60 fps. A 12G-SDI loop-through output is provided for sending your input signal to an additional device.

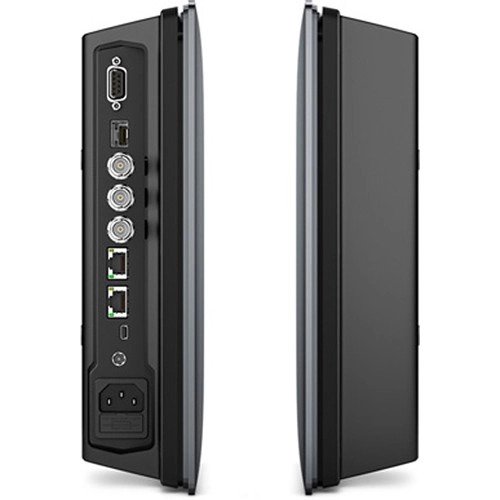

There is also an SMPTE-compatible optical fiber socket for adding a module to connect via optical fiber cable, as well as an Ethernet port with loop-through, AC and DC power inputs, tally input connector, and a USB port for updates.

Local and Remote Control

The backlit front-panel buttons are great for use in dimly lit studios or locations, letting you set input selection, brightness, selection of 3D LUTs, and other advanced features such as H/V delay, blue channel only, and frame guides.

The settings can also be adjusted remotely via a Mac or PC connected over Ethernet, using the included software.

3D LUT Support

Dual 3D LUT support lets you customize color for on-set grading and monitoring. Combined with the 12G-SDI input, the SmartView 4K can display DCI 4K60 footage from high-end cameras such as the Blackmagic URSA, letting you view native LOG gamma color spaces with Rec. 709 or custom color spaces using the 3D LUTs.

blackmagic design SmartView 4K Monitor Features;

• Built-in Teranex processor automatically deinterlaces and scales SD and HD video up to UHD resolution for improved quality on lower resolution video inputs
• Machined metal chassis
• 19″ rack-mountable; 6 RU
• Both AC and DC power input options

SMPTE Compliance

• SMPTE 259M, SMPTE 292M, SMPTE 296M
• SMPTE 372M, SMPTE 424M Level A and B
• SMPTE 425M, SMPTE 2082
