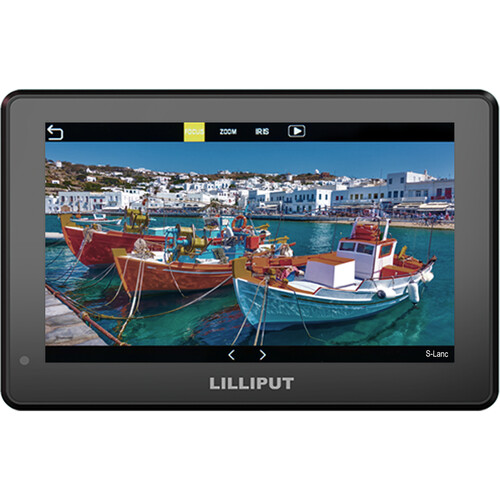

Using the included LANC cable, you can control a variety of camera functions from the display’s touchscreen. With a 16:10 aspect ratio, an ultrabright 2000 cd/m² display, and a 1200:1 contrast ratio, the LCD panel displays Full HD images natively in 1920 x 1200, scaling higher resolutions.
The HDMI loop-through output function allows you to output via 3G-SDI or HDMI to any other compatible device.
The Lilliput HT7S 7 On-Camera Control Monitor supports loading 3D LUTs via the USB port on the bottom, and it supports HDR image input with the ability to display a wide dynamic range such as ST2084-300, ST2084-1000, ST2084-10000, and HLG (Hybrid Log Gamma).

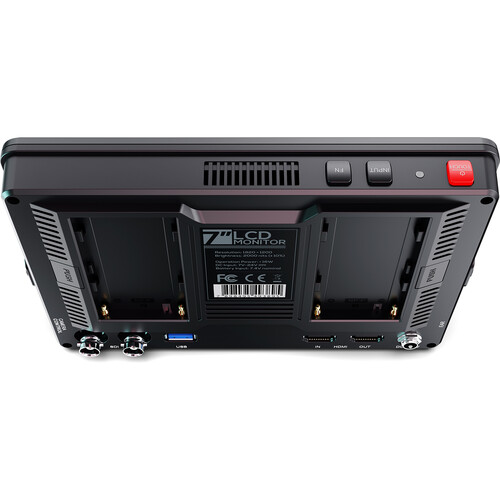

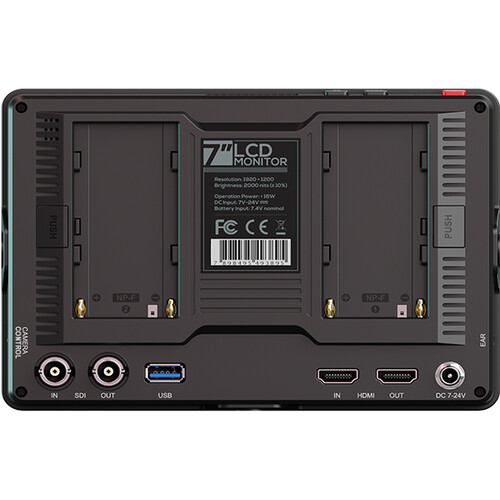

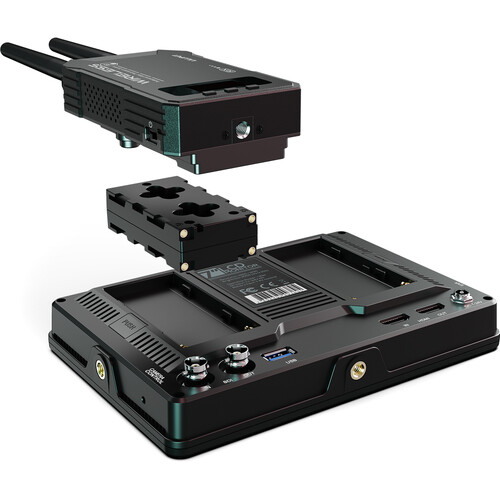

On the back of the monitor is a dual L-series battery plate, so you can power the monitor for a long shoot. The batteries are also hot-swappable, so you can charge one battery and then swap out the other while the monitor is in use, without having to power it down.
The Lilliput HT7S 7 On-Camera Control Monitor features a speaker, a headphone jack, a tally input, and numerous control and function buttons around the display. You can create shortcuts to your favorite and most used monitor functions using the two customizable function keys.
You can mount the monitor onto your camera by attaching the included shoe mount adapter to the 1/4″-20 with threads on the bottom or sides. An HDMI type-A to type-C cable, a tally cable, a power adapter, and a carry bag are also included in the box.
The included LANC cable allows you to control select camera functions such as focus, zoom, iris, and record/stop, with LANC compatible cameras from the monitor’s touchscreen display
