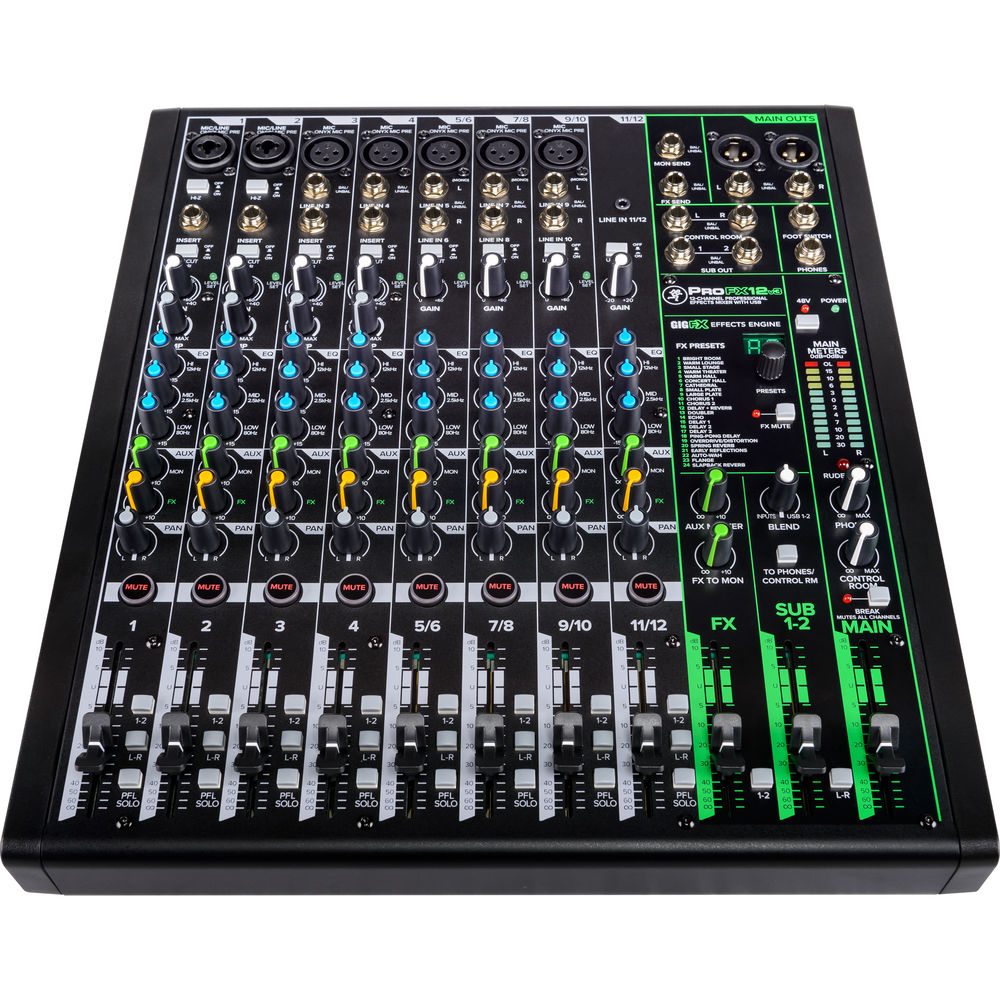

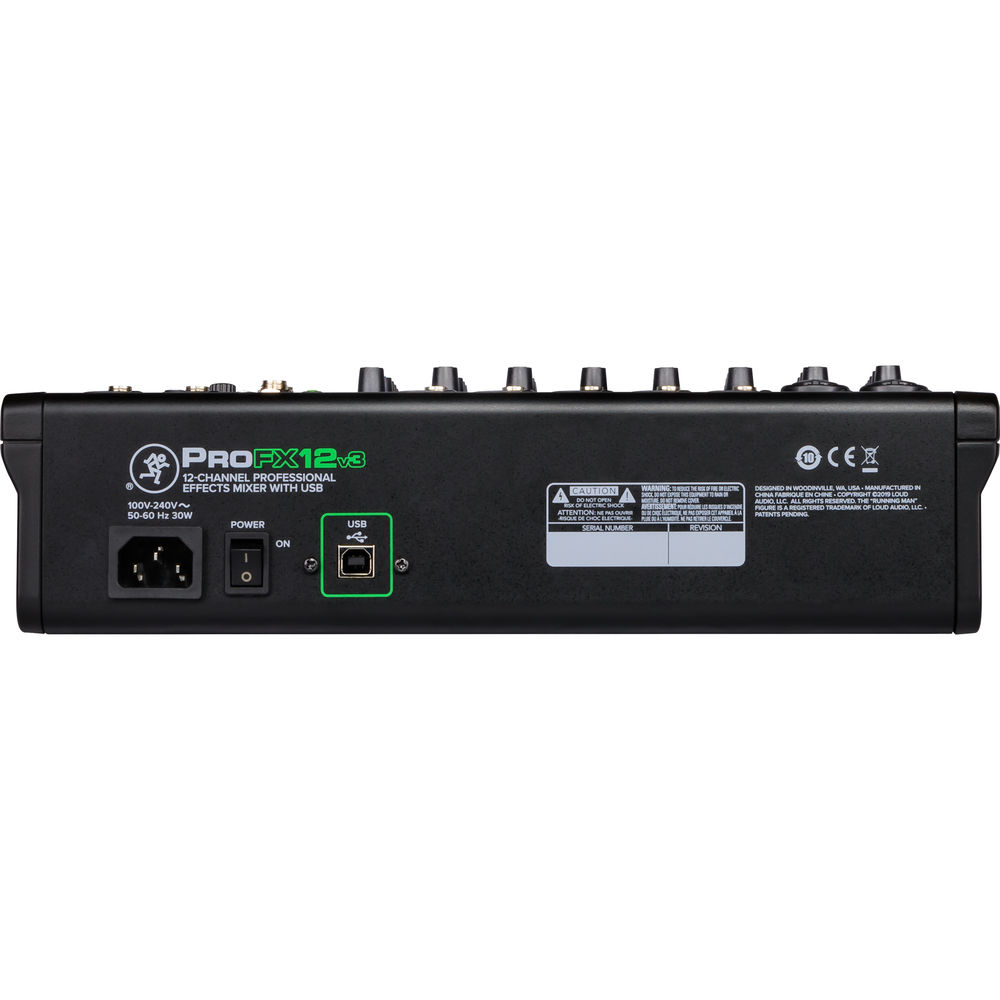

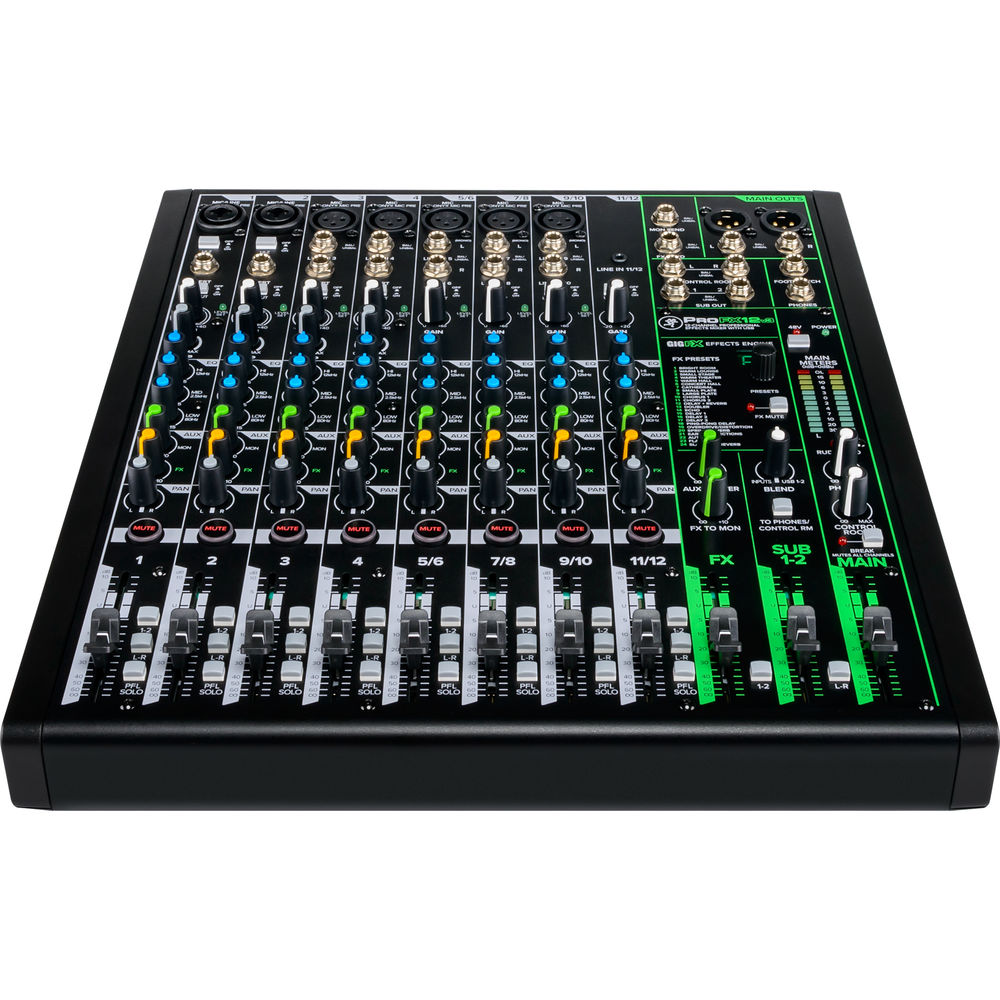

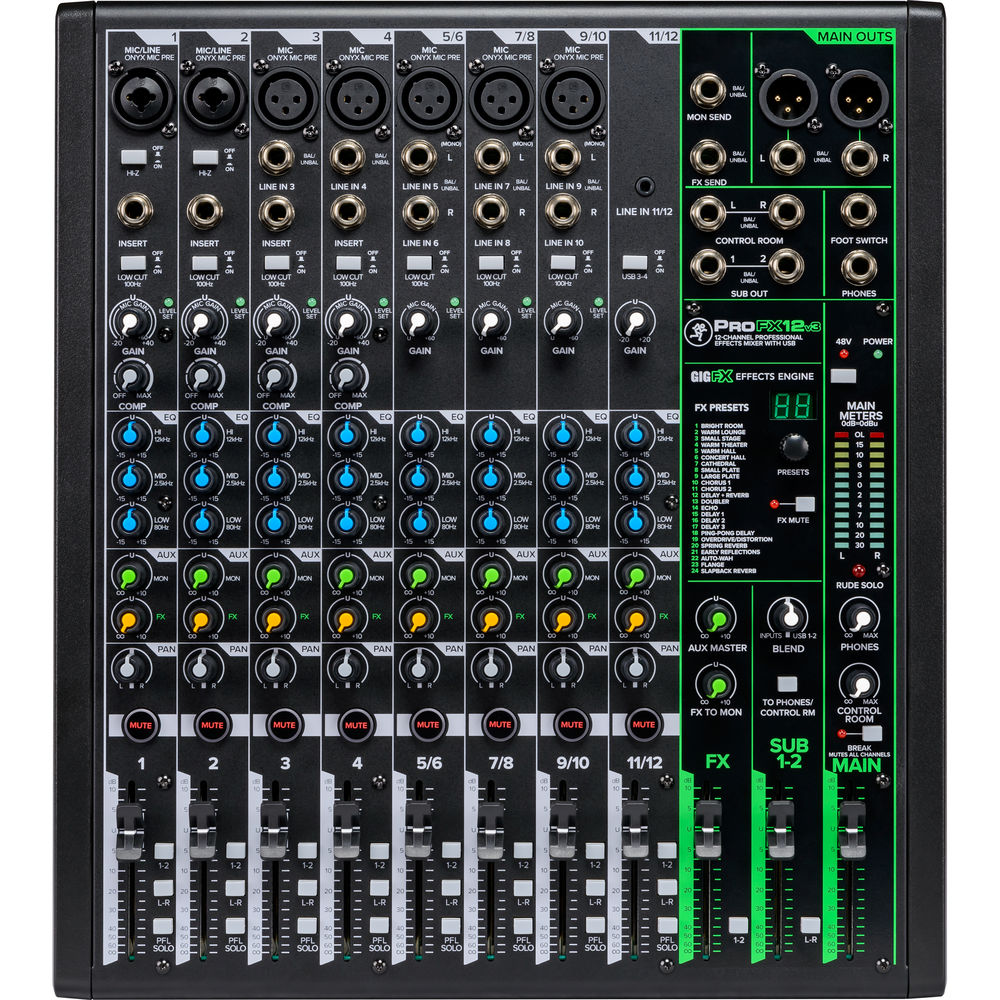

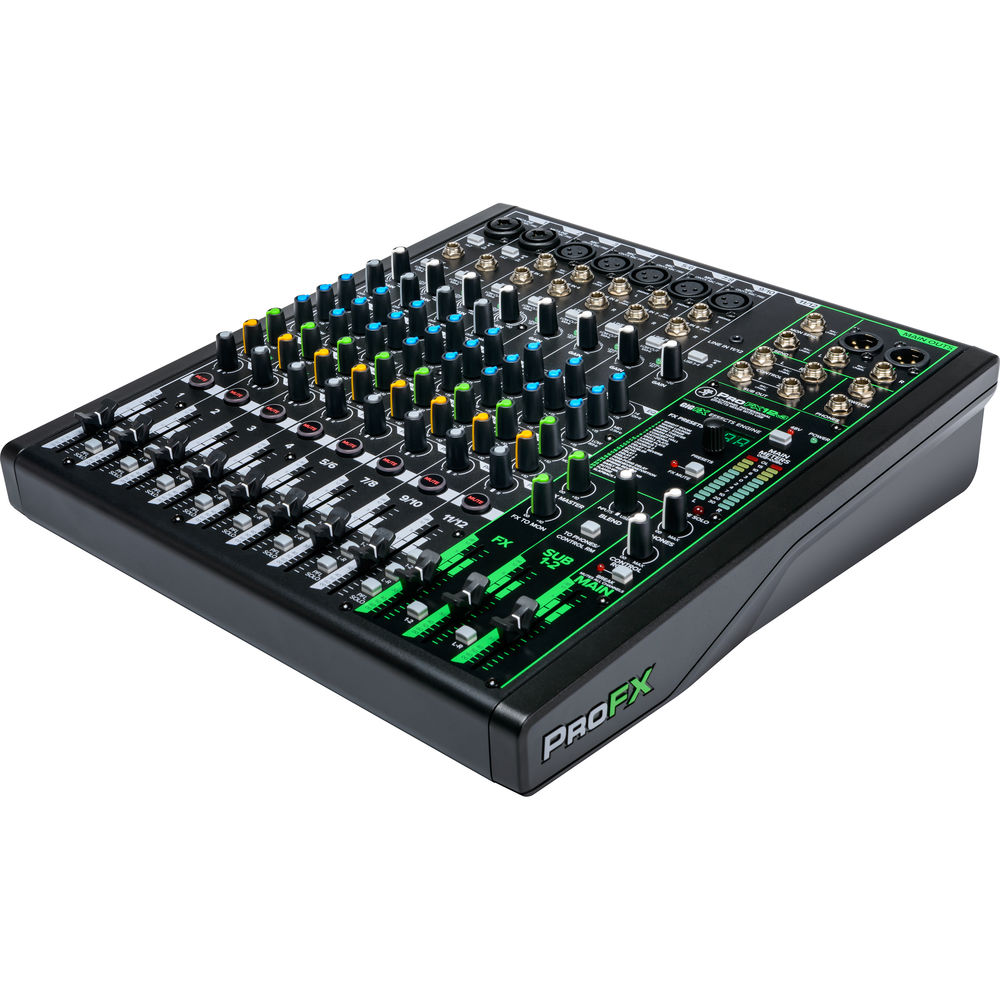

Mackie ProFX12v3 12-channel Mixer With USB And Effects

Call for Price

7 Mic/Line Inputs (Comp 1-4)
3 Mono/Stereo Line Inputs + 3.5mm Input
4 Onyx Mic Preamps with 48V Phantom
Main XLR & 1/4″, Sub, CR Outputs
4 Onyx Mic Preamps with 48V Phantom

SKU: PROFX12 V3 Category: Mixers

Looking for a mixer that makes your life easier when you’re gigging? The Mackie ProFX12v3 12-Channel Mixer can do that and much, much more.

The Mackie ProFX12v3 12-Channel Mixer provides you with great sound and features found in larger mixers while remaining portable.

This Mackie ProFX12v3 12-Channel Mixer is equipped with seven Onyx preamps that provide top-notch sound for your keyboard, mics, and guitars.

Once you’re ready to go, you can use the onboard GigFX to add that little something extra to your mix. No matter if you’re onstage or in your studio, the Mackie ProFX12v3 will always give you amazing audio quality.

we want to make sure that your gig sounds the way you want it to. That’s why we’re excited to tell you more about what the Mackie ProFX12v3 can really do. Each channel starts with Mackie’s Onyx preamp.

Mackie ProFX12v3 Professional Effects USB Mixer Features:

GigFX effects engine delivers 24 effects including reverbs, delays, and choruses
7 Mackie Onyx mic preamps deliver clear signal and 60dB of gain
Rugged design will stand up to the wear and tear of the road
3 Band EQ and 100Hz low-cut filter on all channels
Built-in channel compression
48-volt phantom power on all mic channels
24-bit/192kHz A/D for unmatched audio quality
USB for playback music and recording into your computer
Balanced XLR and balanced/unbalanced outputs
Headphone output has separate volume control for comfortable monitoring

Brand	Mackie
Number of Analog Input Channels	12
Number of Mic Preamps	7
Analog Output Channels	2 x Stereo Master Output 1 x Stereo Control Room/Monitor Output 1 x Stereo Bus/Subgroup Output 1 x Mono Aux Send Output 1 x Mono FX Send Output 1 x Stereo Headphone Output
Mix Routing	Stereo Main Mix Stereo Aux Bus/Subgroup
Faders	None
Meters	Main Meter: 2 x 12-Segment LED
Meter Range	Main Meter: -30 dB to +15 dB Plus Peak/Clip
Signal Processing	–
Gain/Trim Range	-20 dB to +60 dB
EQ	3-Band EQ
EQ Parameters	Low: ±15 dB at 80 Hz Mid: ±15 dB at 2.5 kHz High: ±15 dB at 12 kHz
Filters	High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects	24 x Effect (Type Unspecified)
Digital Audio	–
Bit Depth	24-Bit
Performance	–
Frequency Response	Mic Input to Output: 20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level	+22 dB
Output Level	Main Output: +28 dBu at Max Gain All Other Output: +22 dBu at Max Gain
I/O Impedance	Mic Input: 3.3 Kilohms Insert Return: 10 Kilohms Line Input: ≥ 20 Kilohms Headphone Output: 25 Ohms Main Output: 120 Ohms (Unbalanced) 240 Ohms (Balanced)
Crosstalk	Adjacent Inputs: -90 dB at 1 kHz Input to Output: -80 dB at 1 kHz Fader Off: -75 dB at 1 kHz Muted: -90 dB at 1 kHz
CMRR	70 dB at Max Gain (1 kHz, Mic Into Main Out)
EIN	-126 dBu at Max Gain (150-Ohm Input)
Noise Floor	All Outputs: -95 dBu (Master Level at -∞, Channel Levels at -∞) -80 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N	Mic Input to Main Output: < 0.03% (+4 dBu)
Connectivity	–
Analog Inputs	2 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input 5 x XLR 3-Pin Balanced Mic Input 5 x 1/4" TRS Balanced/Unbalanced Line Input (5 Stereo Pairs) 1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input (1 Stereo Pair) 1 x 1/4" TRS Footswitch Input
Analog Outputs	2 x XLR 3-Pin Balanced Stereo Main Output 2 x 1/4" TRS Balanced Stereo Main Output 2 x 1/4" TRS Balanced Stereo Control Room/Monitor Output (1 Stereo Pair) 2 x 1/4" TRS Balanced Stereo Subgroup Output (1 Stereo Pair) 2 x 1/4" TRS Balanced/Unbalanced Aux/Monitor Send 1 x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power	+48 V, Selectable On/Off (Applied to All Inputs)
Digital I/O	None
MIDI I/O	None
USB	1 x USB-B 2.0()
USB I/O Capacity	2 x Input / 4 x Output
Bluetooth	None
Compatibility	–
OS Compatibility	macOS Windows *As of March, 2022: Check with manufacturer for the most up-to-date compatibility
Power	–
AC Input Power	Universal: 100 to 240 VAC, 50 / 60 Hz
AC Power I/O	1 x IEC Input
Power Consumption	30 W
Physical	–
Rack Mountable	No
Dimensions	3.9 x 13 x 14.8" / 8.1 x 33 x 37.5 cm
Weight	7.9 lb / 3.6 kg
Packaging Info	–
Package Weight	11.3 lb
Box Dimensions (LxWxH)	18.6 x 15.11 x 5.1"
