Rode PinMic Lapel Pin Mount Style Microphone

The RØDE PinMic Wearable Microphone delivers a patented mounting system that surpasses traditional lavalier microphones, and enables flexible mounting in all applications.

Key Features
  • Detachable Capsule & Backplate
  • Attaches to Material Without Clips
  • Kevlar Reinforced Cable
  • Omnidirectional Polar Pattern

34,200

Rode PinMic Lapel Pin Mount Style Microphone

34,200

Rode PinMic Lapel Pin Mount Style Microphone

The RØDE PinMic Wearable Microphone delivers a patented mounting system that surpasses traditional lavalier microphones, and enables flexible mounting in all applications. The PinMic features a detachable capsule and backplate system. Simply place the backplate to the inside of an article of clothing or other material, and reattach the capsule to the three pins on the backplate.

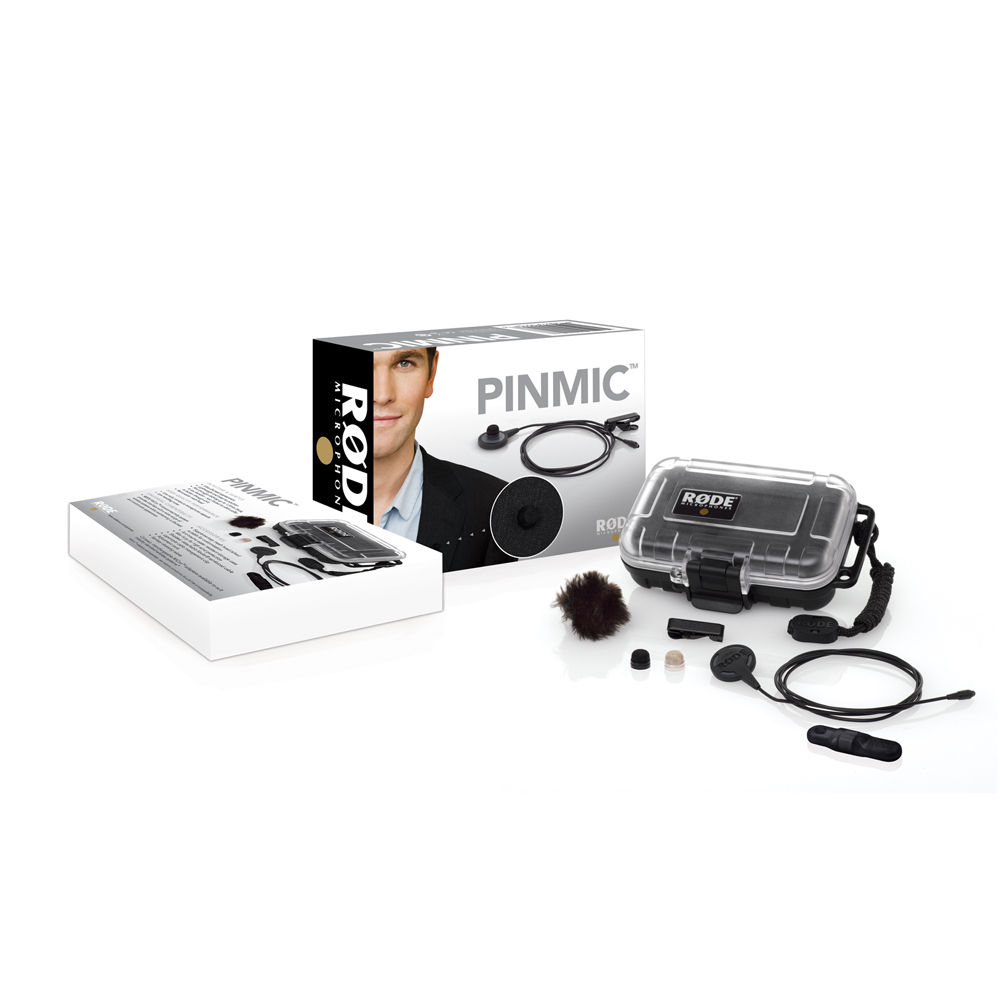

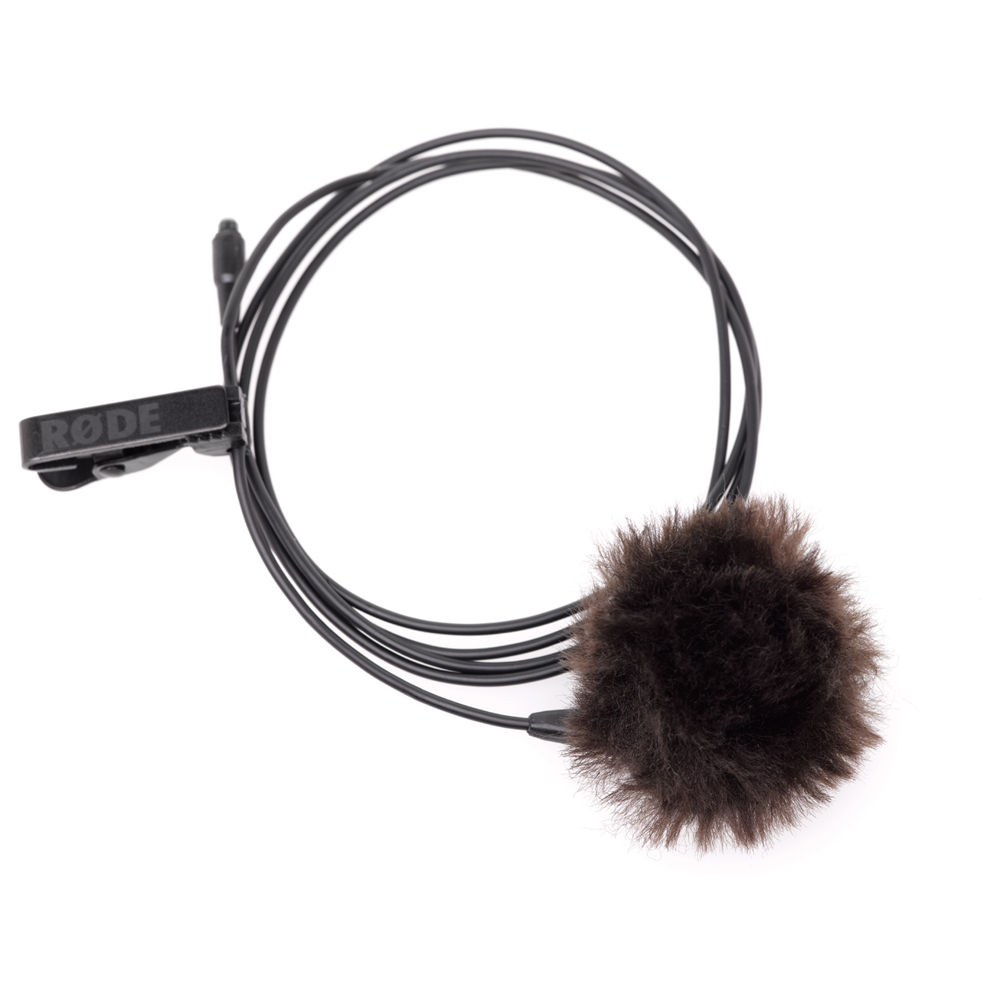

In addition to its convenient mounting system, the PinMic’s miniature condenser capsule features an omnidirectional polar pattern and audio fidelity well suited for professional recording, broadcast applications, live sound and more. The PinMic includes a rugged Kevlar reinforced cable, water resistant pop filter, mini-furry, cable management clip and rugged storage case.

The RØDE PinMic features a detachable capsule head that mounts onto three pins on the microphone backplate

The MiCon connector system provides seamless integration between all of RØDE’s compact wearable microphones and a wide range of wireless systems

Water resistant case provides rugged and secure protection for the microphone, cables and accessories.

Brand

Acoustic Principle

Permanently Polarized

Active Electronics

JFET impedance converter

Capsule

0.10"

Address Type

End

Frequency Range

60Hz – 18kHz

Output Impedance

3000Ω

Maximum SPL

110dBSPL

Maximum Output Level

189.0mV (@ 1kHz, 1% THD into 1KΩ load)

Sensitivity -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz

-33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz

Equivalent Noise (A-weighted)

25dBA

Power Requirements

Plug-in power

Weight (g)

10.00g

Dimensions (L x W x H, mm)

16.00mmH x 22.00mmW x 33.00mmD

Package Weight

0.6 lb

Box Dimensions (LxWxH)

5.7 x 4.2 x 1.8"

Warranty

1 year with free extension to 5 years following registration here: https://en.rode.com/warranty/step1
