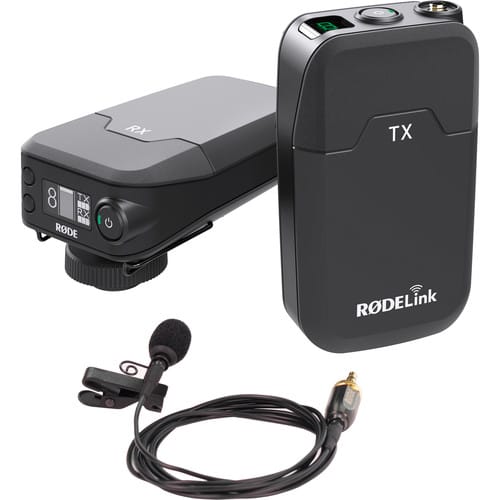

Rode RODELink Filmmaker Kit Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)
Call for Price
- Plug & Record Kit for DIY Videographer
- Omnidirectional Lav Microphone

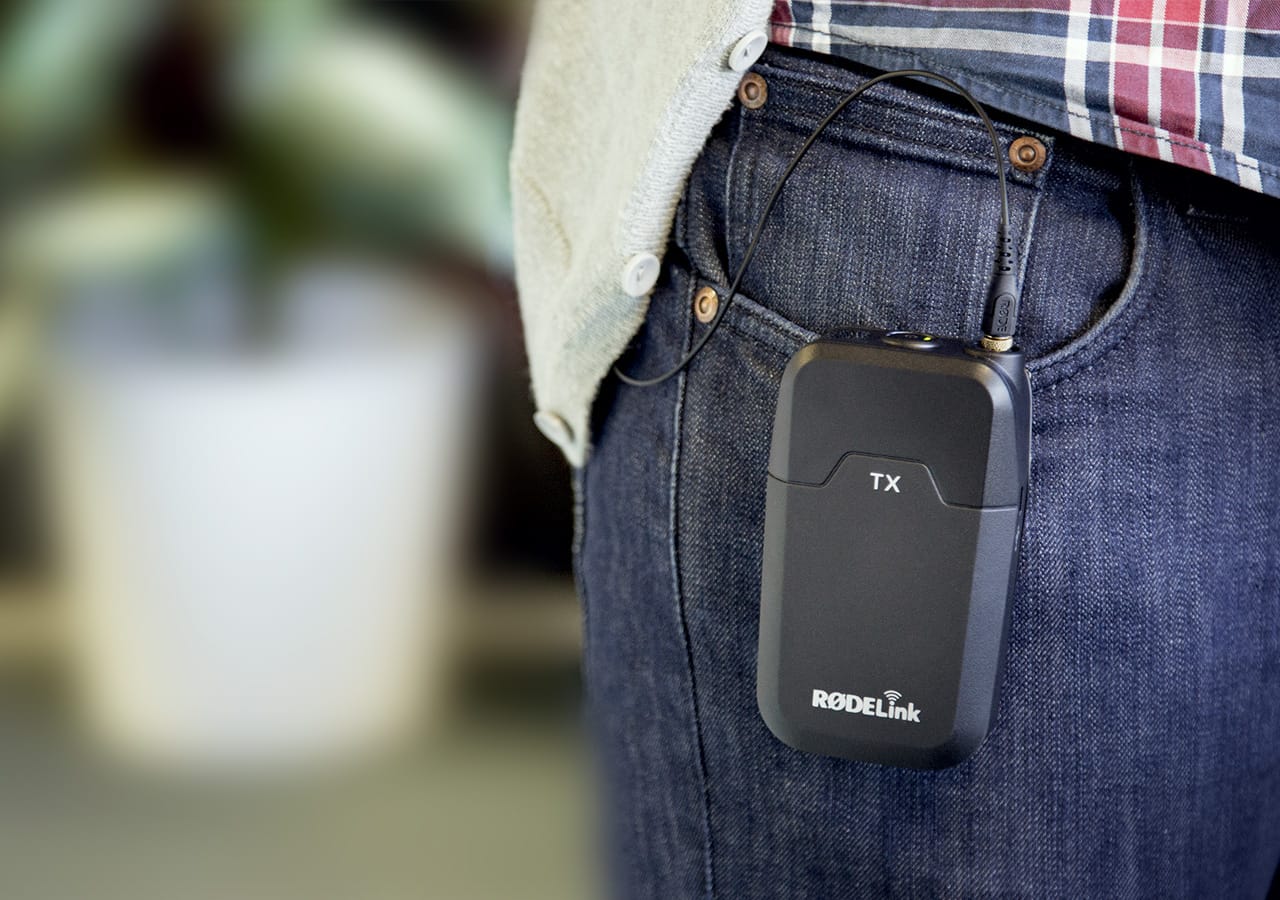

- Bodypack Transmitter

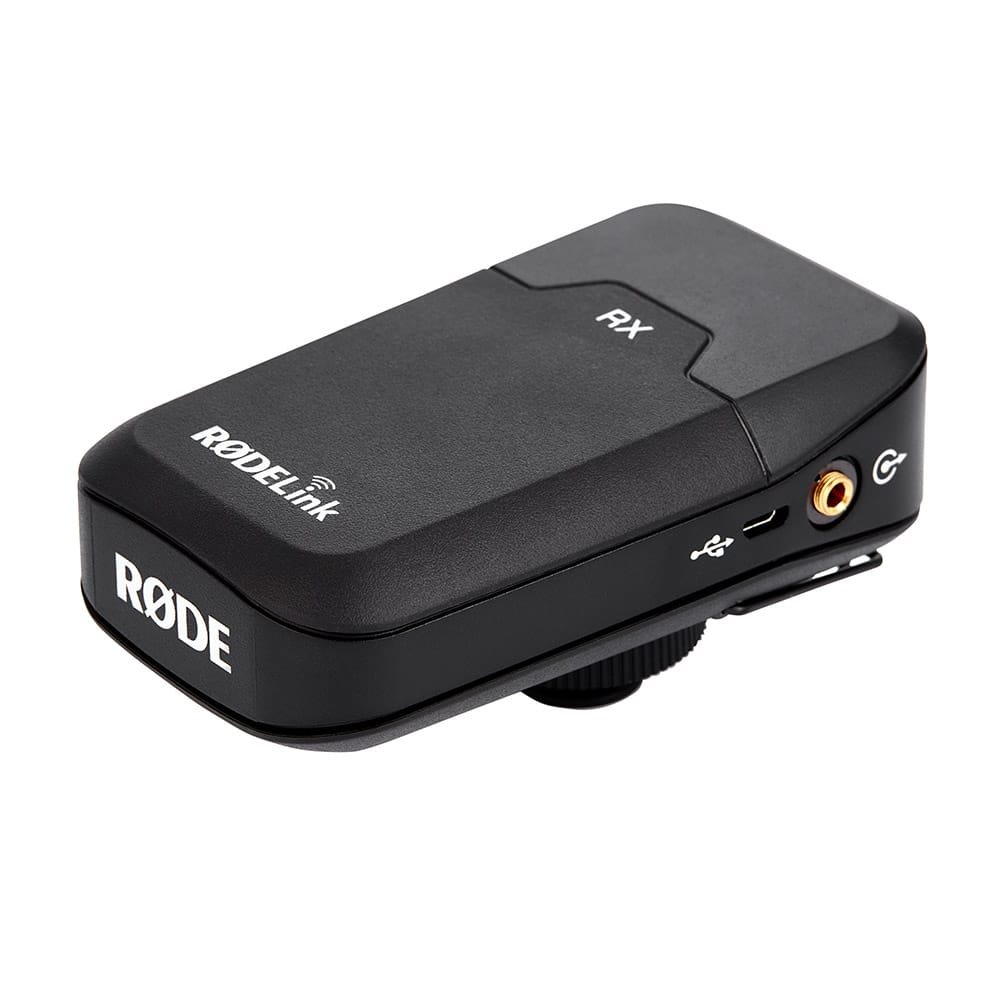

- Diversity Camera-Mount Receiver
Rode RODLNK-FM Link Wireless Filmmaker Kit
The Rode RODLNK-FM Link Wireless Filmmaker Kit from Rode is a wireless system for film and video production that features a transmitter, receiver, and an included lavalier microphone.
The system utilizes a Series II 2.4 GHz 128-bit encrypted digital transmission signal that constantly monitors and hops between frequencies to select the strongest signal.
The Rode RODLNK-FM Link Wireless Filmmaker Kit offers a high signal-to-noise ratio and provides a high-resolution 24-bit 44.1 kHz digital transmission of lossless audio at a range of up to 328 ft. Up to 8 systems can be used together simultaneously
The Rode RODELink Filmmaker Kit brings vloggers, DIY videographers, and content creators a cost-effective digital wireless microphone system with simple, plug-and-record operation, clean and reliable sound, and extended battery life.
The kit features an omnidirectional lavalier microphone for hands-free speech and dialog, along with a bodypack transmitter, and a camera-mount receiver. It operates anywhere in the world in the 2.4 GHz spectrum—well away from potential TV and radio interference.
Features:
- Series II 2.4GHz digital transmission
- 128-bit encrypted signal
- Up to 100m range
- One touch pairing
- OLED digital display
- 3 level gain control
- Omnidirectional lavalier microphone
- AA Battery or USB Power
| RØDELink Filmmaker Kit Specifications | – |
|---|---|
| Transmission type | 2.4GHz Fixed Frequency Agile System |
| System dynamic range | 112dB |
| Range (distance) | Up To 100m |
| Frequency range | 35Hz – 22kHz |
| Maximum output level | 1v Rms (2.8v P-p) |
| Max input signal level | 1v Rms (2.8v P-p) |
| Max latency | 4ms |

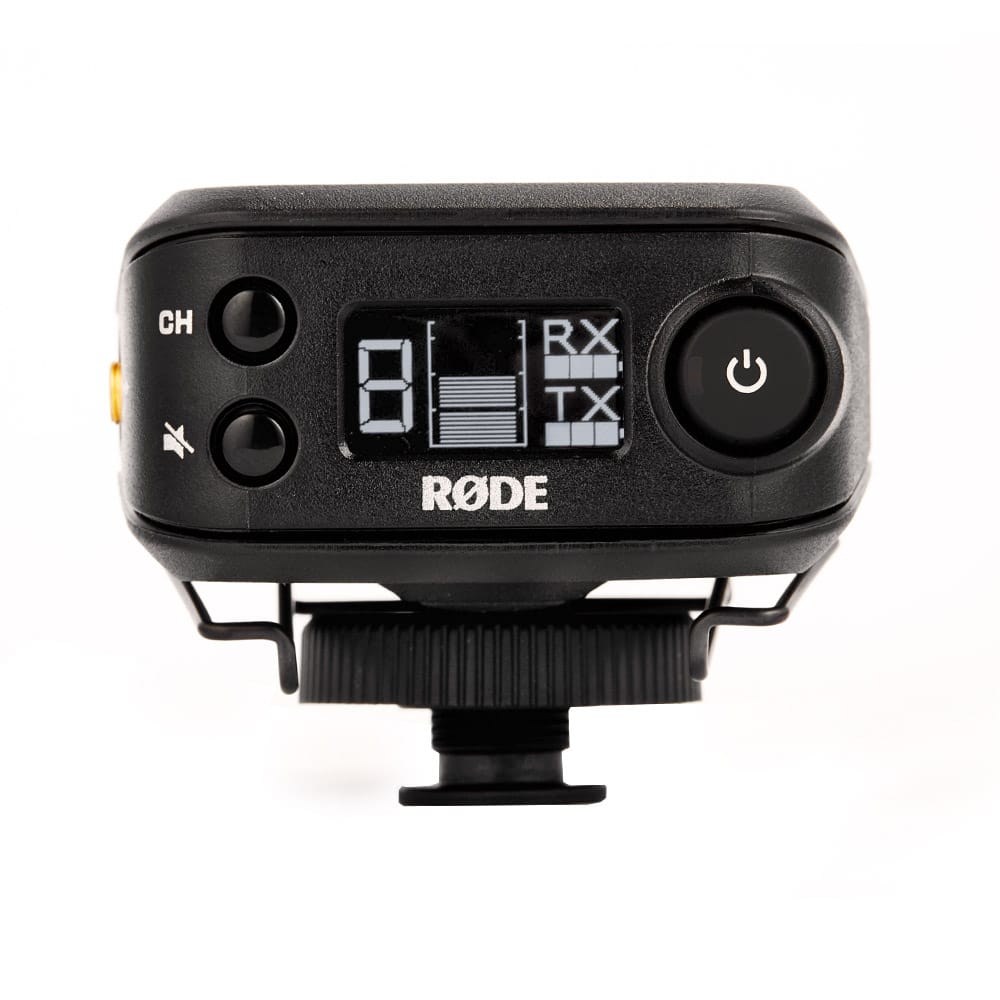

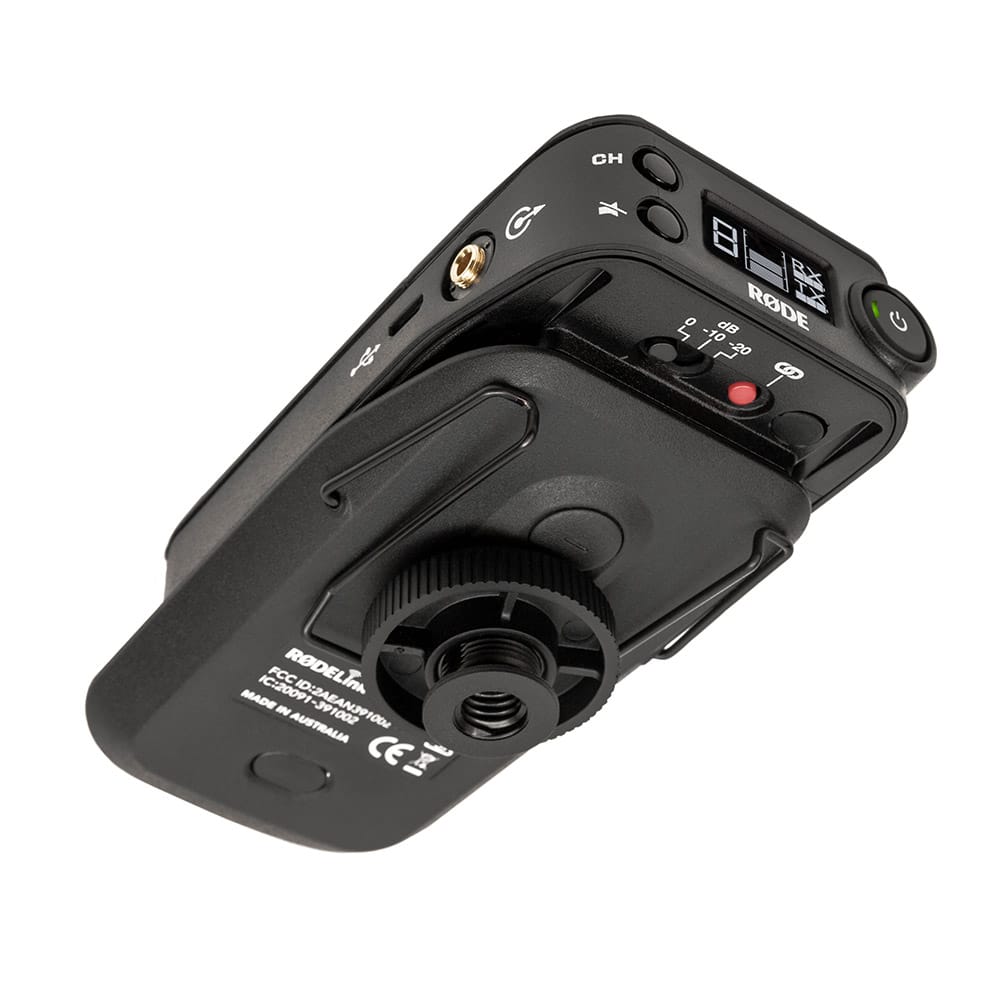

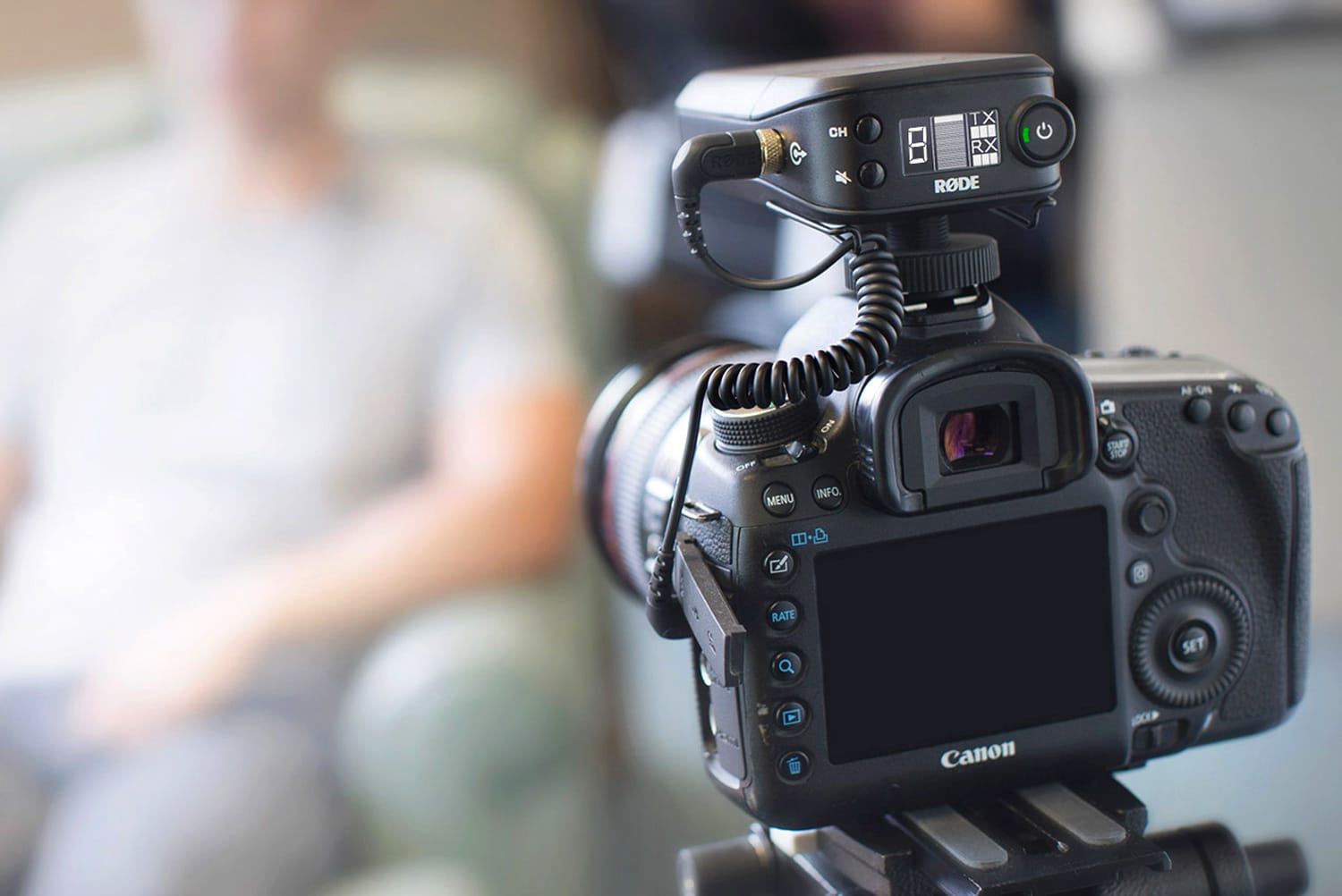

| Receiver (RX-CAM) | – |
| RX Power source | 2 X AA Battery Or MicroUSB |
| RX Antenna | Internal |
| Output connection | 3.5mm TRS Locking Jack Socket – Dual Mono |
| Output impedance | 300Ω |
| RX Dimensions | 111mm X 65mm X 52mm |
| RX Weight | 190gm |

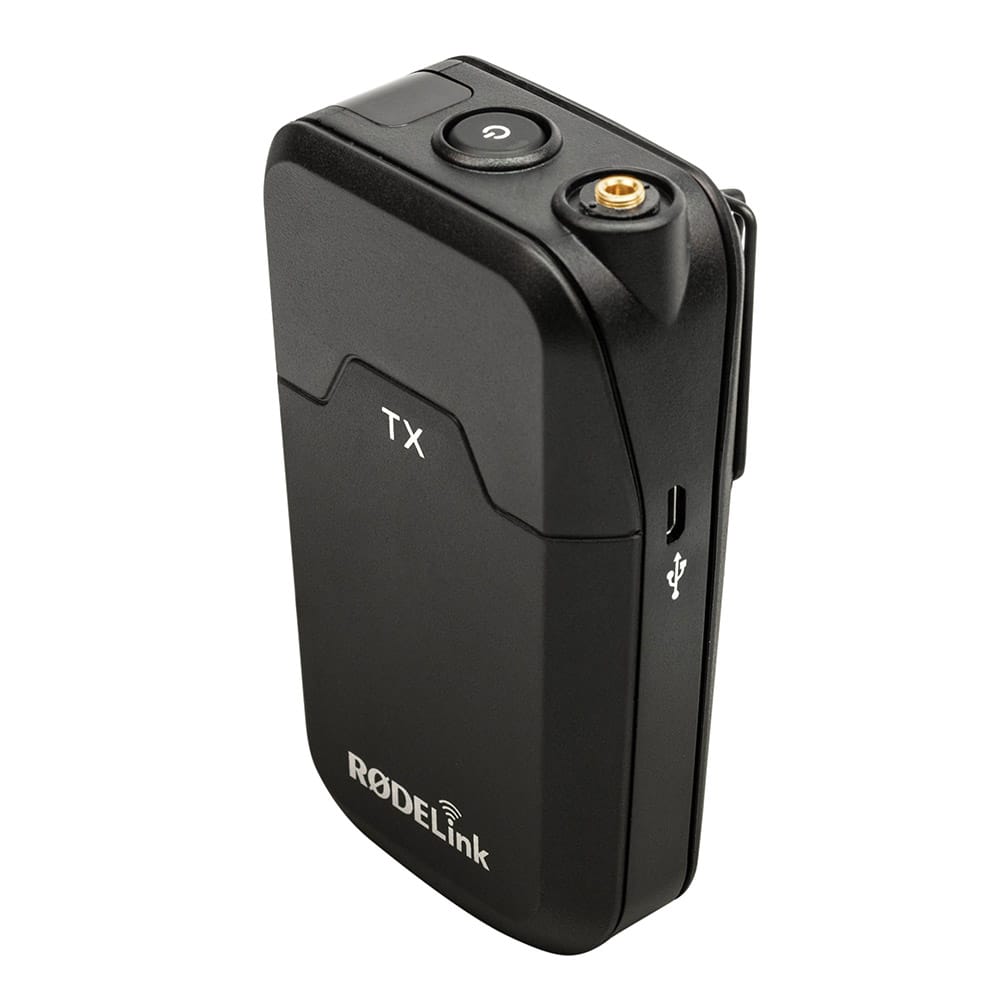

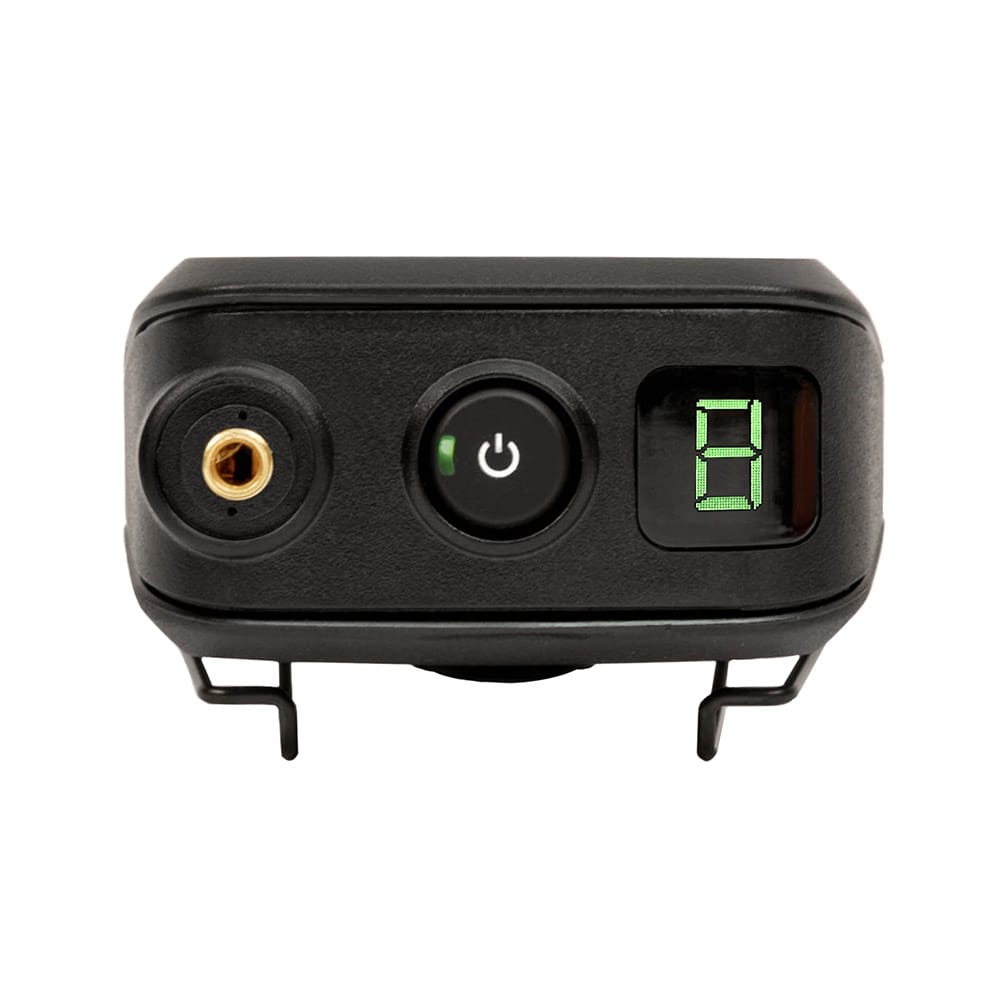

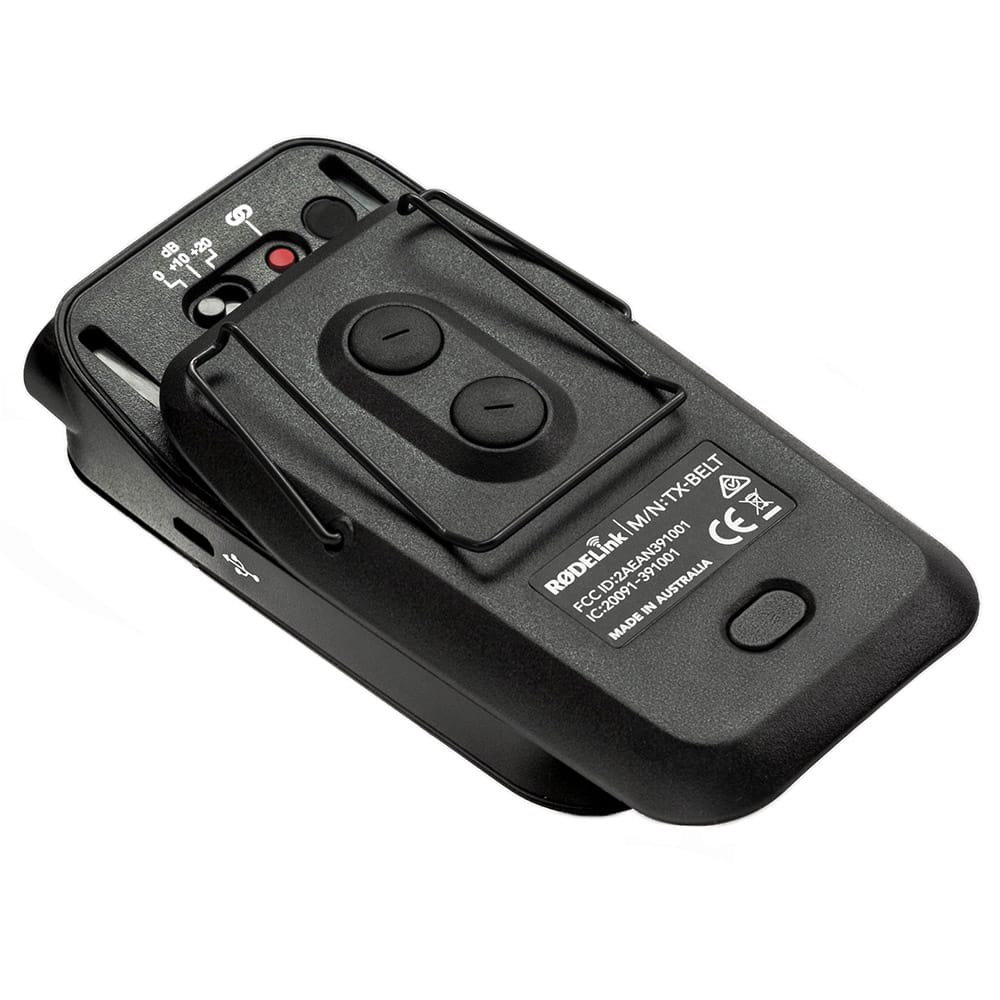

| Transmitter (TX-BELT) | – |
| TX Power source | 2 X AA Battery Or MicroUSB |
| TX Antenna | Internal |
| Input connection | 3.5mm TRS Locking Jack Socket |
| Input impedance | 10kΩ |
| TX Dimensions | 111mm X 65mm X 40mm |
| TX Weight | 190gm |
| RØDELink LAV ACOUSTIC & ELECTRICAL SPECIFICATION | – |
| Acoustic Principle | Permanently Polarised Condenser |
| Polar Pattern | Omni-directional |
| Lav Output Impedance | 3k Ω Typical |
| Lav Frequency Range | 20Hz – 20kHz |
| Maximum SPL | 110 dB SPL (@ 1kHz, 1% THD into 1Ω load) |
| Sensitivity | -33.5db re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2dB @ 1kHz |
| Signal to noise Ratio | 67 dB |
| Equivalent Noise (A-weighted) | 27 dB Typical |
| Lav Dynamic Range | 83 dB Typical |
