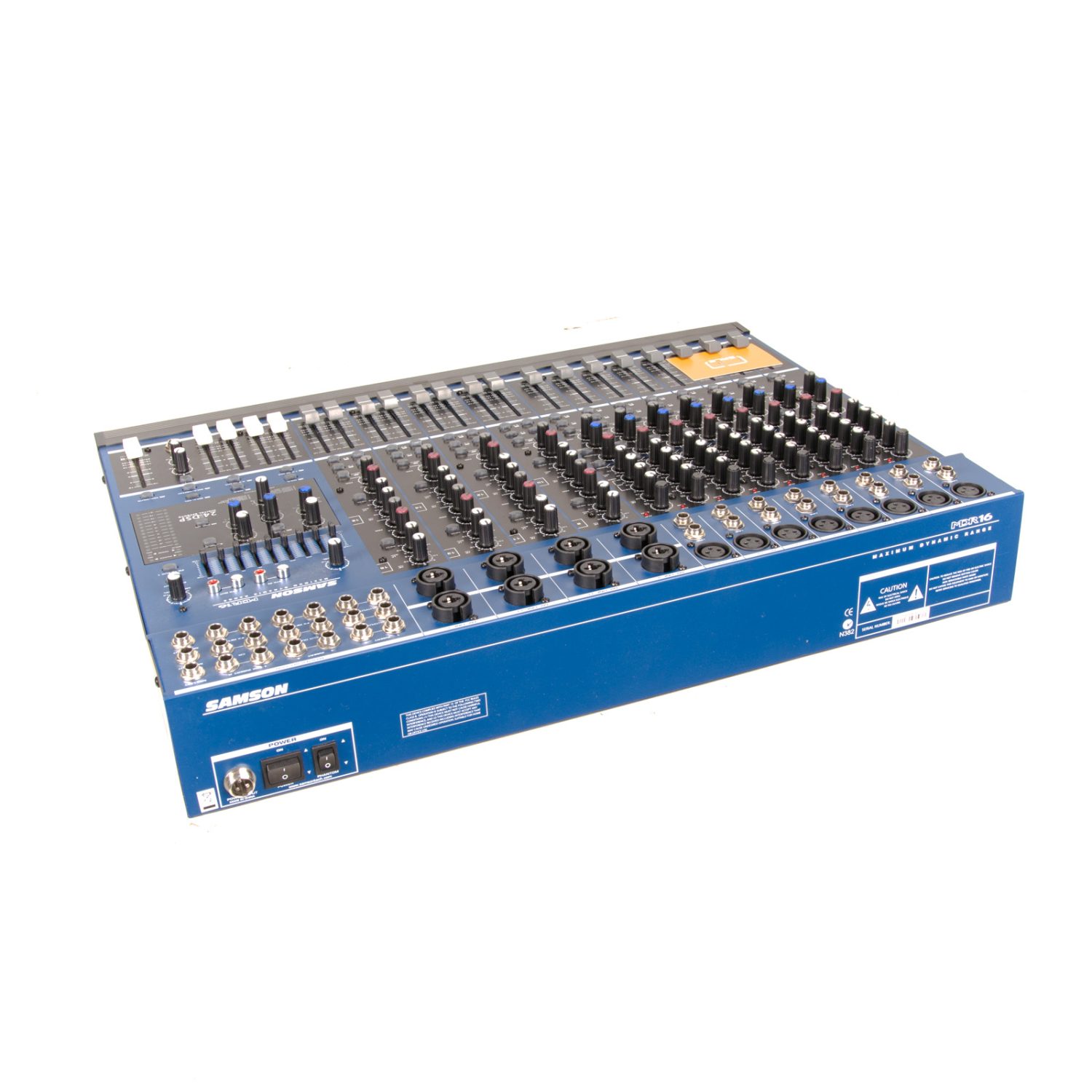

Samson MDR16 – 16 Channel Audio Mixer

The Samson MDR16 16 Channel Audio Mixer is a true professional 16-channel stereo mixer with sixteen low noise microphone preamps, four output buses and a built-in 24-bit DSP effects processor.

The Samson MDR16 16 Channel Audio Mixer features eight mono mic/line input channel strips with a 3-band, mid-swept equalizer plus a low cut filter for setting just the right tone on your microphones or instruments.

These channels also offer two auxiliary sends that can be used for creating a monitor mix and for routing your signals to effects processors.

The Samson MDR16 16 Channel Audio Mixer features a 9-band stereo graphic equalizer allowing you to contour the frequency response of your speaker system for that sound that’s sweet to you.

This high-quality mixer also provides a mono output with level control, four 60mm bus output faders for sub mixing and a 60mm stereo master fader for smooth fades of the main mix.

Samson MDR16 16 Channel Audio Mixer Optimized for recording, live sound reinforcement and commercial installations, the MDR16 is an ideal mixing solution offering big sound in a compact package.

• 16-channel stereo mixer with 4-channel bussing
• Preamps on each channel
• 9-band graphic EQ for master output
• Internal 24-bit DSP effects
• 60mm channel and main faders
• 3-band EQ with sweepable mid
• Mono out with level control
• Dual 12-segment LEDs
• 2 aux sends with 2 stereo effects returns
• Headphone out with level control
• Available phantom power
• 2-track in and out connectors with send to mix switch
