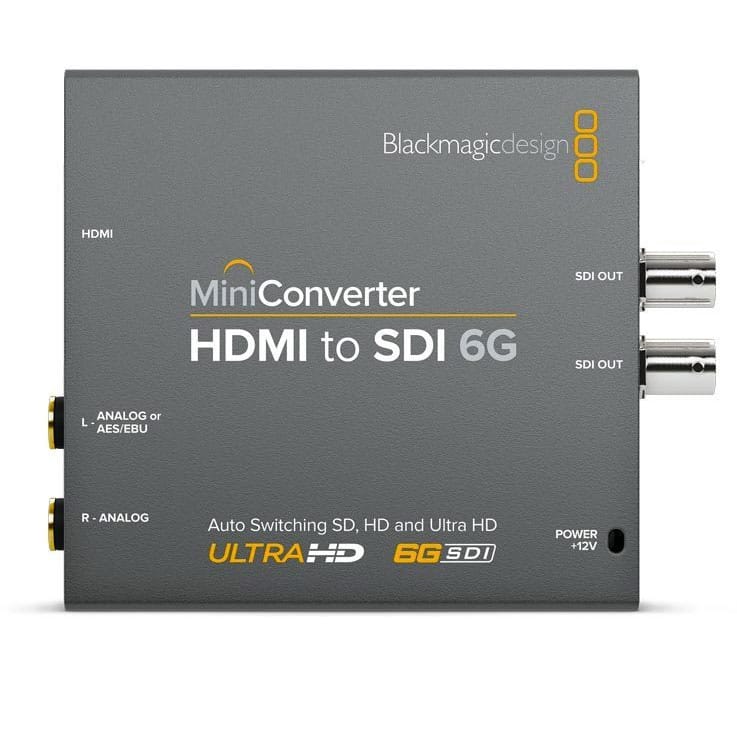

Blackmagic Design HDMI to SDI 6G Mini Converter
Call for Price
The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p.
Key Features
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
Blackmagic Design HDMI to SDI Mini Converter are the world’s most advanced converters because they include the latest 6G-SDI technology.
Automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards up to 2160p30.
You get advanced features such as redundant SDI inputs, re‑clocked loop outputs, HDMI instant lock, 33 point LUT support, and full analog and AES/EBU audio connections.
So you can convert video, as well as embed or de-embed audio! Choose from a wide range of 3G and 6G-SDI models, depending on the conversion you need!
The Blackmagic Design HDMI to SDI Mini Converter, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p.
This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment.
With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.
Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats.
The Blackmagic Design HDMI to SDI Mini Converter also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals.
Audio is embedded in the SDI output from either the HDMI input or from the two 1/4″ input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.
- The Blackmagic Design HDMI to SDI Mini Converter settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design’s website. The USB port also enables the firmware to be updated.
- The device is powered by an included 12V power supply and includes international socket adapters.
Additional Features
- 4:2:2 Sampling and color precision
- HD scaler and SD down-conversion
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards
| Brand | |
|---|---|
| Video Input | 1 x HDMI, Type A |
| Video Output | 2 x 6G-SDI |
| Multi-Rate Support | Auto detection of SD, HD, 3G, or 6G-SDI signals |
| Reclocking | Yes |
| Audio Input | Analog: 2 channels with 1 x 1/4" jack per channel |
| Format Support | DCI 4K UHD 4K HD SD |
| SDI Compliance | SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081 |
| SDI Video Rates | Switchable between SD, HD, Ultra HD and DCI 4K |
| SDI Video Sampling | 4:2:2 |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI |
| HDMI Format Support | UHD 4K HD SD |
| HDMI Color Space | YUV and RGB |
| HDMI Color Precision | 4:2:2 |
| HDCP Compliance | No. HDMI input is unable to capture from copy-protected HDMI sources |
| Format Conversion | HD down-conversion |
| Settings Control | Mini switches or USB software |
| Firmware Upgradeable | Via USB |
| Power Supply | 12 VDC |
| Power Consumption | 4.44 W |
| Operational Voltage Range | 12 to 31 VDC |
| Operating Temperature | 32 to 104°F / 0 to 40 °C |
| Storage Temperature | -4 to 113°F / -20 to 45 °C |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm |
| Weight | 8.6 oz / 243.8 g |
| Packaging Info | – |
| Package Weight | 1.035 lb |
| Box Dimensions (LxWxH) | 5.9 x 5.6 x 2.6" |
Only logged in customers who have purchased this product may leave a review.
- Blackmagic Design HDMI to SDI 6G Mini Converter
- 12V Power Supply with International Socket Adapters
