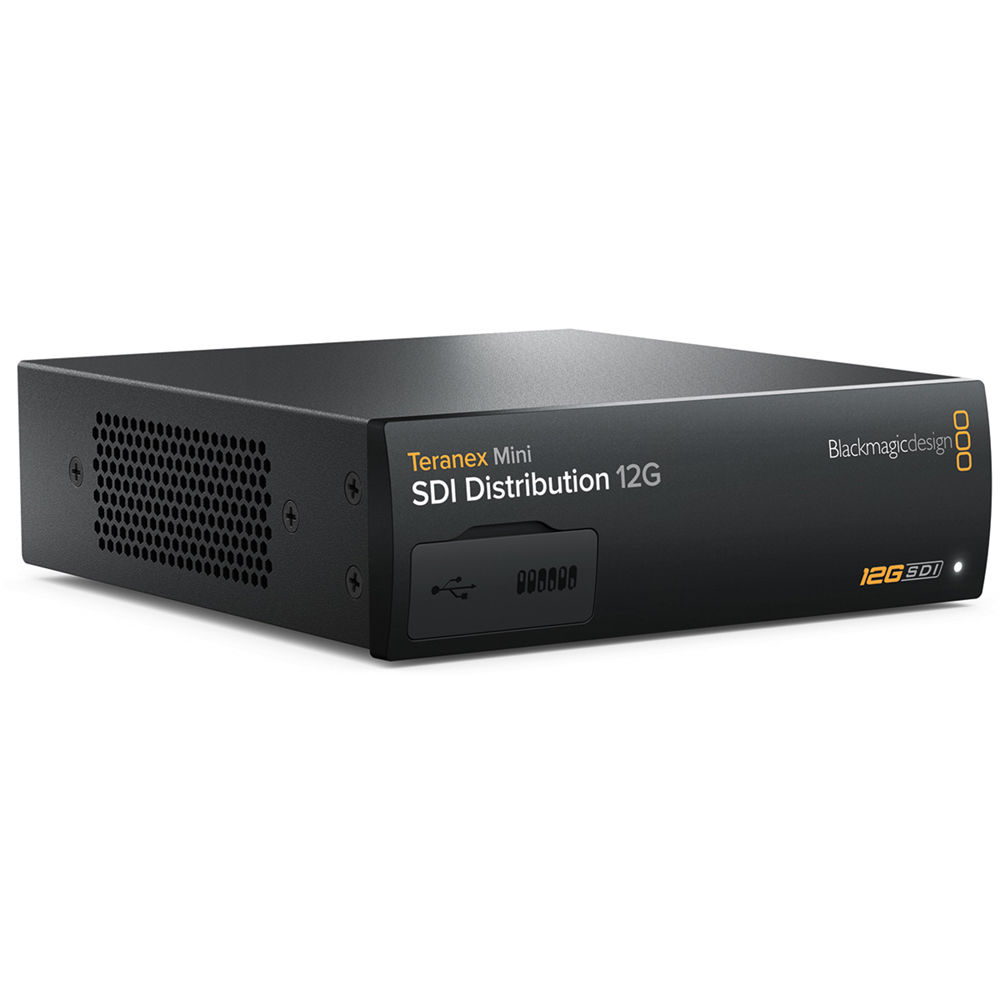

Blackmagic Design Teranex Mini SDI 12G Distribution
Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60.
Key Features
- SDI Video Input
- SDI Video Output
- Multi Rate Support
- Updates and Configuration: USB or Ethernet
Blackmagic Teranex Mini SDI Distribution 12G a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD.
And Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.
Introducing Teranex Mini, the next generation 12G-SDI converters with award winning Teranex quality and support for all SD, HD and Ultra HD formats up to 2160p600.
All Teranex Minis include an internal AC power supply, professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power.
Blackmagic Teranex Mini SDI Distribution 12G features a user upgradable front panel that includes a color display and user controls so you can quickly monitor video and change settings right from the front of the converter.
You get all of the same great features of regular Blackmagic Teranex Mini SDI Distribution 12G and so much more.
| Brand | |
|---|---|
| SDI Video Input | 1x 12G-SDI SD/HD/2K/4K auto switching |
| SDI Video Output | 8x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input |
| Multi Rate Support | Automatic switching between SD/HD/2K and 4K |
| Updates and Configuration | USB or Ethernet |
| Re-Clocking | Yes |
| Standards 1 | SD Format Support: 525/29.97 NTSC, 625/25 PAL |
| Standards 2 | SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082 |
| Software Control | Mac OS X and Windows software upgrade via USB and Ethernet |
| Internal Software Upgrade | Via included updater application |
| Settings Control | Basic Settings Control: Mini Switches, USB and Ethernet via free software utility |
| Power Supply | 1x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 to 240V AC Input |
| Power Over Ethernet | Can be powered via 48V DC using PoE+ (power over ethernet) |
| Power Consumption | 18W |
| Operational Voltage Range | 90 to 240V AC |
| Operating Temperature | 0 to 40 deg. C / 32 to 104 deg. F |
| Storage Temperature | -20 to 60 deg. C / -4 to 140 deg. F |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions (H x W x L) | 1.73 x 5.51 x 6.69" / 44 x 140 x 170mm |
| Weight | 20.46oz / 580g |
Only logged in customers who have purchased this product may leave a review.
- Blackmagic Design Teranex Mini SDI Distribution 12G Converter
- Software SD Card
