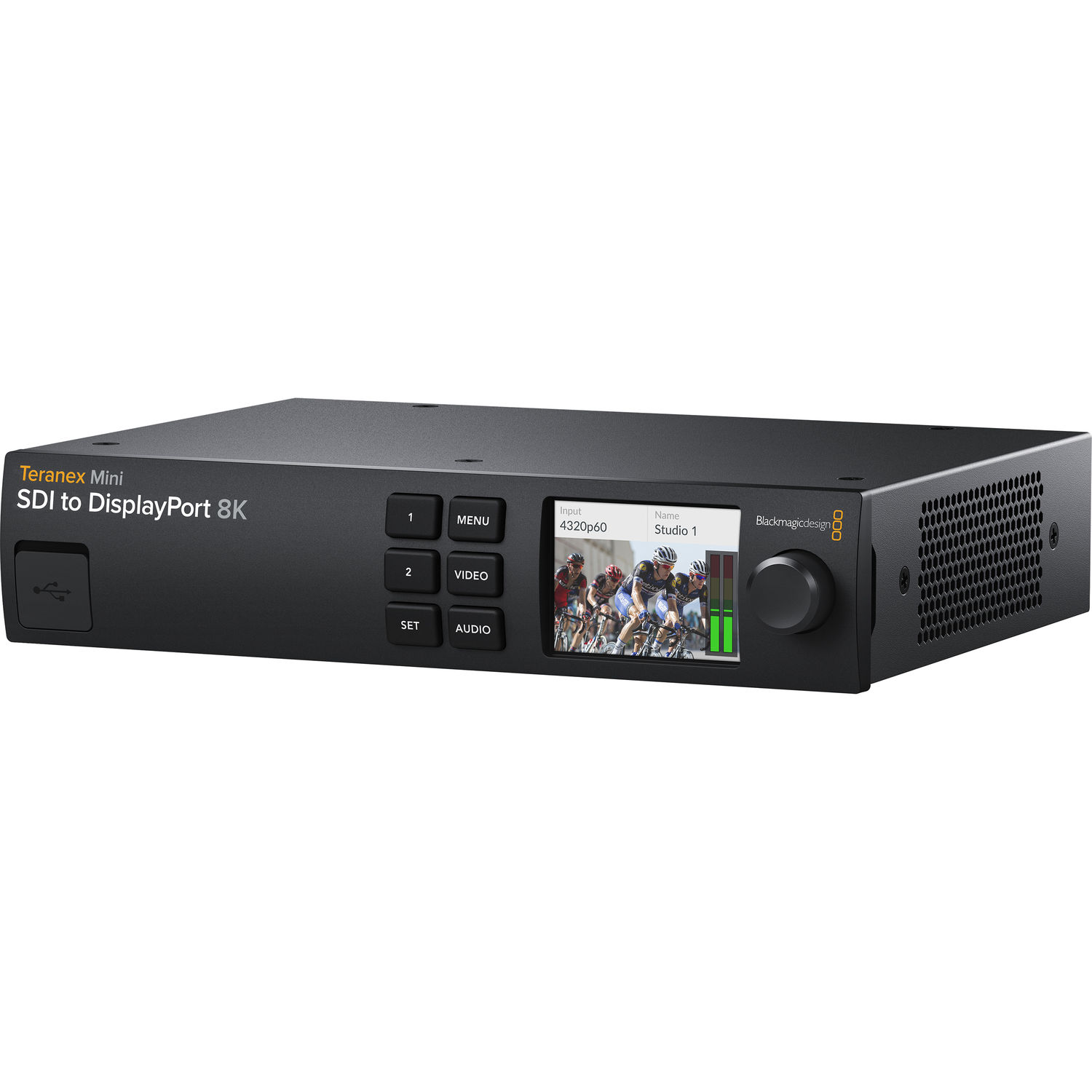

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter

Name: BlackmagicDesign Teranex Mini SDI to DisplayPort 8K Converter Price
Brand: BlackMagic Design
SKU: CONVN8TRM/AA/SDIDP

Call for Price

Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD, Accepts Third-Party Calibration Probes, 12G-SDI I/O / DisplayPort/USB-C D.P. Out, 2 x Selectable, On-Screen Scopes

Out of stock

SKU: CONVN8TRM/AA/SDIDP Category: Signal Converters Brand: BlackMagic Design

The BlackmagicDesign Teranex Mini SDI to DisplayPort 8K Converter is a powerful and versatile device that allows you to convert SDI signals to DisplayPort in all HD, Ultra HD, and 8K formats up to 4320p60. It features a built-in down converter, HDR formats, 33 point 10-bit RGB LUTs, built-in waveform, parade, vector, and histogram scopes, monitor calibration for compatible monitors, and more.

The BlackmagicDesign Teranex Mini SDI to DisplayPort 8K Converter is perfect for a variety of applications, including:

Video editing and grading
Live Production
Broadcast
Post-production
VFX
And more!

It is also a great solution for users who need to connect their SDI devices to a DisplayPort monitor or TV.

BlackmagicDesign Teranex Mini SDI to DisplayPort 8K Converter Features:

Converts SDI signals to DisplayPort in all HD, Ultra HD and 8K formats up to 4320p60
Built-in down converter
HDR formats
33 point 10-bit RGB LUTs
Built-in waveform, parade, vector and histogram scopes
Monitor calibration for compatible monitors

Benefits:

Convert SDI signals to DisplayPort
Support for HDR formats
Built-in scopes
Monitor calibration

Brand	BlackMagic Design
Input	—
Video Input Connectors	4 x BNC (12G-SDI)
Input Video Format	SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps
Audio Input Connectors	None
Embedded Audio Input	SDI: 16-Channel (per Input)
Output	—

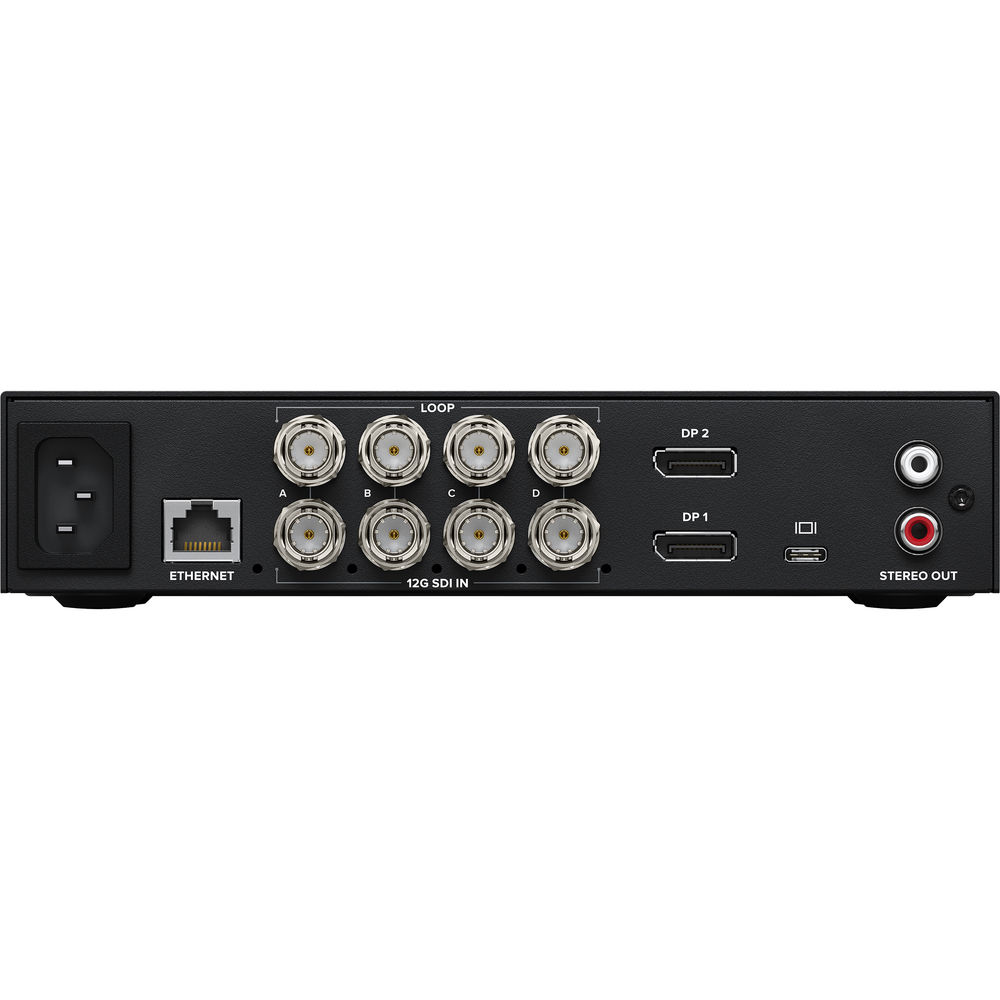

Video Output Connectors	4 x BNC (12G-SDI) (Loop Output) 2 x DisplayPort (DisplayPort 1.4) 1 x USB Type-C (DisplayPort 1.4)
Output Video Format	SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K: 25/29.97/30/47.95/48/50/59.94/60 fps 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps
Audio Output Connectors	2 x RCA Analog
Output Audio Format	Analog: 48 kHz / 24-Bit
Embedded Audio Output	SDI: 16-Channel (per Output)
Standards	—-
Video Standard Compliance	SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
Connectivity	—
Other I/O	1 x RJ45 Control 1 x USB Type-C
Hardware	—
Display Size	2.2"
OS Compatibility	Windows 10 macOS 10.14 macOS 10.1 or Later
Power Connector	1 x IEC C14 Input
Power Consumption	Device: 100 to 240 VAC (35 W)
Environmental	—
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%
General	—
Dimensions	8.27 x 1.73 x 6.93" / 21.01 x 4.39 x 17.6 cm
Weight	2.6 lb / 1.18 kg
Warranty Length	Limited 1-Year Warranty
Packaging Info	—
Package Weight	2.985 lb
Box Dimensions (LxWxH)	11.4 x 8.6 x 3.5"
